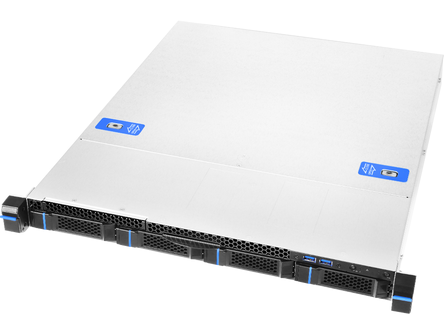

Chenbro RM14604

Equipped with a brand new tool-less design 3.5” HDD tray, built in 12Gb/s hot-swap backplane and smart speed control fans, Chenbro's new RM14604 features easy maintenance for SMEs.

FEATURES:

1) New generation of 3.5" tool-less HDD tray based on Chenbro 3.0 architecture.
2) Tool-less installation for top cover, slim ODD, internal 2.5" HDD, and fans.
3) Supports 40mm fan up to thickness 56mm.
4) Supports 12Gb/s mini-SAS HD and SATA backplanes.
5) Front access info tag for easy server management.
6) Optional specific kits for Intel S1200SP server board.
7) Built-in cable managment kits.
8) Supports Flex ATX PSU.
9) Optional rack handle to place your logo and colour.

Price available upon request.

Product Specifications

Form Factor
1U
Motherboard Form Factor
ATX (12" x 9.6")
Dimensions (D x W x H)
550 x 438.5 x 43.2(mm)
21.6" x 17.2" x 1.7"
Drive Bays
3.5" Hot-swap: 4
Internal 2.5":  2
Slim ODD:  1

PSU Form Factor
Flex ATX
Indicators
1 x Power Status
2 x LAN Activity
1 x HDD Status
1 x System status
Front Buttons
1 x Power On/Off
1 x System Reset
1 x UID
2 x USB 3.0 or USB 2.0
Cooling Fans
Middle: 3 x 40 mm (up to 4), (Up to T=56 mm) PWM
Expansion Slots
1 x Full Height (Option)
HDD Backplane
12Gb/s mini-SAS HD or 12Gb/s SAS/SATA
Metal Thickness
SGCC / 1.0mm
Weights
Net Weight: 7.5kg
Gross Weight: 10.0kg
Cubic Feet
1.84
Container Loading (Single Packing)
20’: 360pc
40’: 744pc

How to Order

To place an order, please make an enquiry using the 'Request More Information' form at the bottom of the page and one of our experienced sales team will contact you shortly.

Alternatively, you can call or email us and speak to one of our experienced technical sales team.

Tel: 01438 842 300
Email: sales@tmc-uk.com
