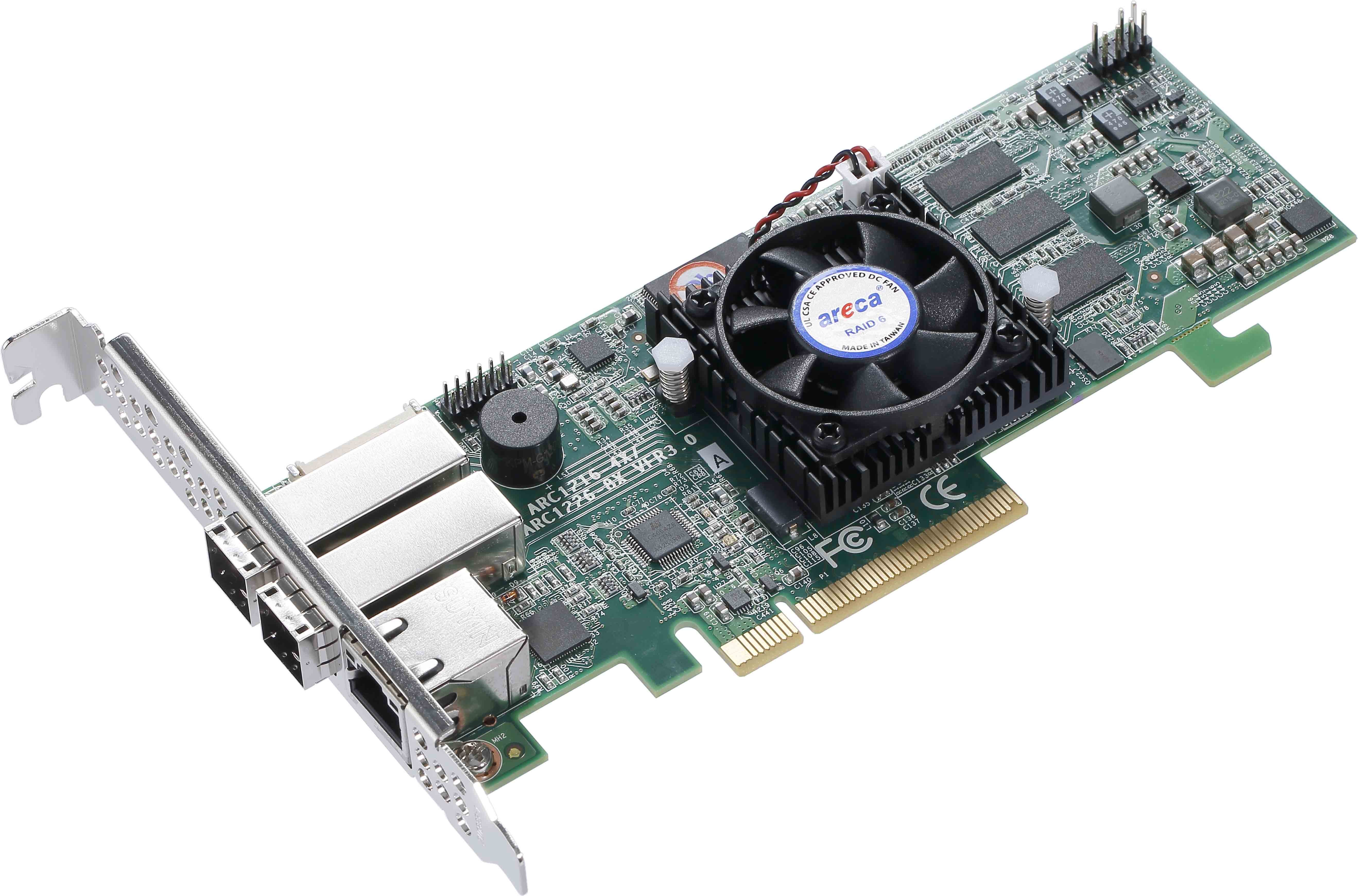

Areca ARC-1226-8X

The 12Gb/s SAS is designed for backward compatibility with 6Gb/s and 3Gb/s
SAS/SATA hard drives. The 12Gb/s SAS interface supports both 12Gb/s SAS disk
drives for data-intensive applications and 6Gb/s SATA drives for low-cost bulk storage
of reference data. The ARC-1216-4i/4x and ARC-1226-8i/8x RAID controllers only
support directly attach to 4/8 SAS/SATA drives without supporting the expand
function. The ARC-12x6 series default support 1GB on-board DDR3-1600 SDRAM
memory.

Price available upon request.

Product Specifications

Adapter Architecture
Dual Core   RAID-on-Chip (ROC) 1.2 GHz processor
PCIe 3.0 x8 lane host interface
1GB on-board DDR3-1600 SDRAM with ECC
Write-through or write-back cache support
Support up to 4/8 internal or 4/8   external 12Gb/s SAS ports
ARC-1216-8x supports up to 8 x 12Gb/s   SAS/SATA HDDs
BIOS boot array support for greater fault   tolerance
Boot support for the uEFI host BIOS
NVRAM for RAID event & transaction   log
Redundant flash image for controller   availability
Multi-adapter support for large storage   requirements
Support flash-based or battery backup   module
(FBM/BBM) ready (optional)
RoHS compliant
Monitors/Notification
System status   indication through global HDD
activity/fault connector, individual   activity/fault
connector, LCD/I2Cconnector and alarm   buzzer
SMTP support for email notification
SNMP support for remote manager
Enclosure management (Serial Bus) ready
Out-of-Band Manager
Firmware-embedded   web browser-based McRAID
storage manager, SMTP manager, SNMP agent   and
Telnet function via Ethernet port
API library for customer to write monitor   utility
Support push button and LCD display panel   (optional)
Environmental/Physical
Low Profile: 169.5 x 64.4 mm
RAID Features
RAID level 0, 1,   10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
Multiple RAID 0 and RAID 10(1E) support   (RAID 00 and RAID100)
Multiple RAID selection
Support HDD firmware update
Configurable stripe size up to 1024KB
Online array roaming
Online RAID level/stripe size migration
Online capacity expansion and RAID level   migration simultaneously
Online volume set growth
Instant availability and background   initialization
Support global and dedicated hot spare
Automatic drive insertion/removal   detection and rebuilding
Support intelligent power management to   save
energy and extend service life
Support for native 4K and 512 byte sector   SAS and SATA devices
Multiple pairs SSD/HDD disk clone   function
SSD automatic monitor clone (AMC) support
Controller level hardware encryption   function support
RAID Management
Field-upgradeable firmware in flash ROM
In-Band Manager
Hot key   "boot-up" McBIOS RAID manager via M/B BIOS
Web browser-based McRAID storage manager   via
ArcHttp proxy server for all operating   systems
Support Command Line Interface (CLI)
API library for customer to write monitor   utility
Single Admin Portal (SAP) monitor utility
Operating System
Windows   10/8/Server2012/7/2008/Vista/XP/2003
Linux
FreeBSD
VMware (only driver package available w/o
management)
Solaris 10/11 x86/x86_64
Mac OS X 10.4 or Higher
