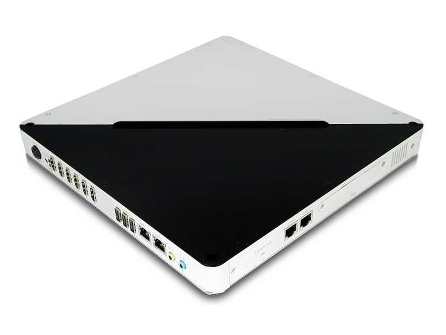

SI-58

● iSMART - for auto-scheduler and power resume
● Supports up to six display outputs
● Discrete AMD Radeon E6760 graphics processors (480 processing elements) with 1024MB GDDR5-1600 graphics memory
● Supports 2nd/3rd Generation Intel Core i processor
● Supports 2x DDR3 1333MHz SO-DIMM, Max. 16GB
● Expresscard slot and dual mPCIe(x1) slots
● Two RS232 serial ports
● Slim and segregated flow ventilation design

Price available upon request.

Product Specifications

System Mainboard
IB958
CPU Type
2nd/3rd Generation Intel Core i7/i5/i3 Mobile Processors
CPU Package
FCPGA988
Chipset
Intel QM67
Memory
Supports 2x DDR3 1333MHz SO-DIMM memory, max 16GB
Graphics
AMD Radeon E6760 GPU (480 Cores @ 600 MHz; 31W)
  • 1024MB GDDR5-1600 (57.6 GB/s)
  • 128-bit wide, 1.DirectX 11GB GDDR5, 51.2 GB/s
  • DirectX 11, Shader 5.0, OpenGL 4.1 capable
  • UVD3 video & display engines for HD, Blu-ray & 3D
LAN
1x Intel 82579LM Gigabit LAN controller (with iAMT 7.0)
1x Intel 82579V Gigabit LAN controller
Expansion Slots
2x Mini PCI-E(x1) for Wi-Fi, Bluetooth, TV tuner options
1x Expresscard slot for 3G module
I/O Interface

6x HDMI ports (2 with audio output)
3x USB 2.0 ports
2x RJ45 for Gigabit LAN
2x RJ45 for RS232 serial port
2x Microjack audio connectors for Line-in & Line-out
1x Power button
1x Mini Din 12V DC Jack

Auto Control and Monitoring
Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min)
On / Off scheduler: 2 time slots
Power Requirement
+12V DC-in
Construction
SGCC
Weight
3.1Kg (6.83lbs)
Chassis Colour
Black / White
Storage
1x removable 2.5" HDD drive bay
1x mSATA
Power Supply
15W power adaptor
Mounting
Slim bracket with wall mounting halls
Dimensions
275mm(W) x 275mm(D) x 30mm(H)
10.8”(W) x 10.8”(D) x 1.18”(H)
Operating Temperature
0°C~ 45°C (32°F~113°F)
Storage Temperature
-20°C ~ 80°C (-4°F~176°F)
Relative Humidity
5~90% @ 45°C, (non-condensing)
Vibration
SSD: 5 grms / 5~500Hz / random operation
HDD: 0.25 grms / 5~500Hz / random operation
Certification
CE, FCC, cULus, CCC
