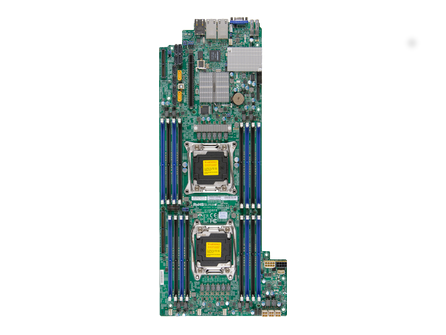

Supermicro X10DRFR

1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
2. Intel® C612 chipset
3. Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x DIMM slots
4. Expansion slots: 1 PCI-E 3.0 x16 (LP); 1 PCI-E 3.0 x8 (Micro Low Profile)
5. Intel® i350 Dual port GbE LAN
6. 10x SATA3 (6Gbps); RAID 0, 1, 5, 10
7. Integrated IPMI 2.0 and KVM with Dedicated LAN
8. 2x USB 3.0 ports (rear) and 1x Type A

Price available upon request.

Product Specifications

Product SKUs
MBD-X10DRFR -B
  • X10DRFR (Bulk Pack)
Physical Stats
Form Factor
  • Proprietary
Dimensions
  • 6.8" x 19.46" (17.3cm x 49.4cm)
Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP**)
  • Dual Socket R3 (LGA 2011)
Cores/Cache
  • Up to 22 Cores† / Up to 55MB† Cache
System Bus
  • QPI up to 9.6 GT/s
Note

**Motherboard supports this maximum TDP, Please verify your system can thermally support
Note

† BIOS version 2.0 or above is required
System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB† ECC 3DS LRDIMM, 256GB ECC RDIMM
Memory Type
  • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
On-Board Devices
Chipset
  • Intel® C612 chipset
AHCI SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
SCU SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
 IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® i350 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
Video
  • ASPEED AST2400 BMC
Input / Output
SATA
  • 10x SATA3 (6Gbps) ports
NVMe
  • 2x Internal NVMe ports (PCI-E 3.0 x4)
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 3x USB 3.0 ports (2 rear + 1 Type A)
Video
  • 1x VGA port
Serial Port / Header
  • 1x Fast UART 16550 port / 1 Header
DOM
  • DOM (Disk on Module) power connector
TPM
  • 1x TPM Header
Chassis (Optimized for X10DRFR)
Tower / 4U Rackmount
  • CSE-F418BC-R1K62BP
  • CSE-F424AS-R1K28BP
SuperServer(s) with X10DRFR
Model(s)

  • SYS-F628R3-RTB+
  • SYS-F628R3-R72B+
  • SYS-F618R2-R72+
  • SYS-F618R2-RT+
Expansion Slots
PCI-Express

  • 1 PCI-E 3.0 x16 Low-profile slot
  • 1 PCI-E 3.0 x8 Micro Low Profile slot
System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1
Management
Software
  • Intel® Node Manager
  • SuperDoctor® 5
  • Watch Dog
  • NMI
  • IPMI 2.0
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
  • 6 Phase-switching voltage regulator
FAN
  • 4x 4-pin fan headers
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temparature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 4x Fan Connectors (2x fan on backplane)
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • Suspend static indicator LED
  • UID/Remote UID
Other Features
  • RoHS
Operating Environment
Operating Temparature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temparature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
