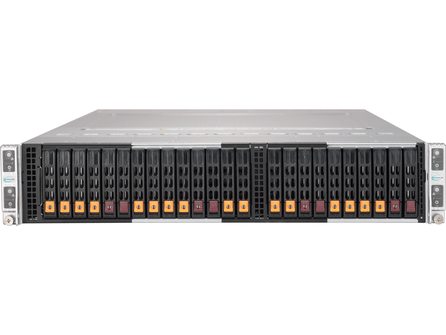

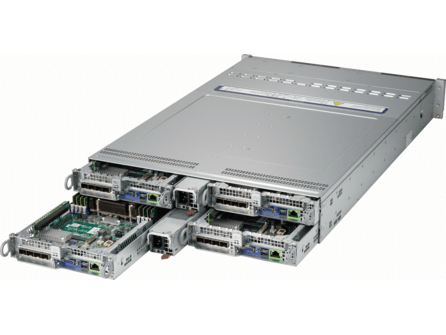

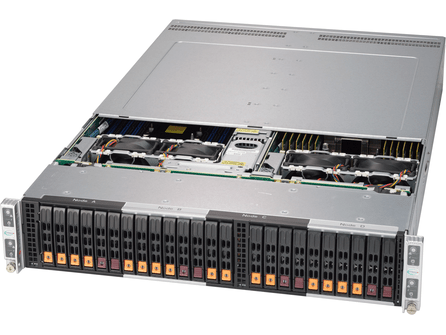

Supermicro 2124BT-HNTR (Complete System Only)

AMD EPYC
Compute Intensive Applications
HPC, Data Center, Enterprise Server
Hyperscale / Hyperconverged


1. Dual AMD EPYC™ 7003/7002 Series Processors (the latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2.
Up to 4TB ECC 3DS LRDIMM, up to DDR4-3200MHz; 16 DIMM slots

3.
2 PCI-E 4.0 x16 (LP) slot; 1 SIOM card support (flexible networking)
   Note: must bundle with Network card
4
. Integrated IPMI 2.0 + KVM with dedicated LAN
 Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management
5.
 6 Hot-swap 2.5" drive bays (4 NVMe [Gen3] + 2 SATA3, or 6 SATA3)
M.2 Interface: 1 SATA/PCI-E 3.0 x4
   and 1 PCI-E 3.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-key

6.
Video via Aspeed AST2500 BMC

7.
2200W Redundant Power Supplies
Titanium Level (96%)

(Full redundancy based on
   configuration and application load)

Price available upon request.

Product Specifications

Product SKUs
AS -2124BT-HNTR
  • A+ Server 2124BT-HNTR (Black)
Motherboard (per Node)
Super H12DST-B
Processor/Cache (per Node)
CPU
  • Dual AMD EPYC™ 7003/7002 Series Processors
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
  • Supports CPU TDP up to 280W*
Cores
  • Up to 64 Cores
Chipset
  • System on Chip (SoC)
Note
  • * Certain CPUs with high TDP higher than 225W may be supported only under specific conditions. Please contact TMC Technology Technical Support for additional information about specialised system optimisation.
System Memory (per Node)
Memory Capacity
  • 16 DIMM slots
  • Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs
  • 8-channel memory bus
  • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
Memory Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices (per Node)
Chipset
  • System on Chip
Storage
  • NVMe
  • SATA3 (6Gbps) via AMD EPYC
Network
  • 1 PCI-E 4.0 x16 SIOM LAN Networking Slot for flexible networking, see SIOM LAN options support matrix
    (Must bundle with at least one SIOM network card)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
  • ASPEED AST2500 BMC

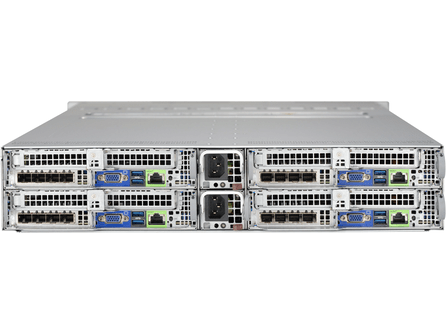

Input / Output (per Node)
LAN
  • Provided via SIOM (optional)
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA port
DOM
  • 1 SuperDOM (Disk on Module) port
Others
  • 1 COM port (header)
  • TPM 2.0 header
System BIOS (per Node)
BIOS Type
  • AMI 32Mb SPI Flash ROM
Management (per Node)
Software
  • IPMI 2.0
  • KVM with dedicated LAN
  • SSM, SUM
  • SuperDoctor® 5
  • Watch Dog
Power Configurations
  • ACPI / APM Power Management
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-217BHQ+-R2K22BP
Dimensions and Weight
Width
  • 17.68" (449mm)
Height
  • 3.47" (88mm)
Depth
  • 28.75" (730mm)
Package
  • 24.33" (618mm) H x 9.57" (243mm) W x 45.08" (1145mm) D
Weight
  • Gross Weight: 85 lbs (38.6 kg)
  • Net Weight: 54.5 lbs (24.7 kg)
Available Colours
  • Black
Front Panel (per Node)
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express
  • 2 PCI-E 4.0 (x16) Low-profile slots
  • 1 SIOM card support
    (must bundle with network card)
M.2
  • Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4
  • Form Factor: 2280, 22110
  • Key: M-key
Drive Bays (per Node)
Hot-swap
  • 4 Hot-swap 2.5" NVMe (Gen3)/SATA3 + 2 Hot-swap 2.5" SATA3 drive bays

    Note: NVMe Gen4 drives may only operate at Gen3 speed
System Cooling
Fans
  • 4 Heavy duty 8cm PWM fans
Power Supply

2200W Redundant Power Supplies with PMBus

Total Power Output
  • 1200W/1800W/1980W/2090/2200W
Dimension
(W x H x L)
  • 45 x 40 x 480 mm
Input
  • 1200W: 100-127Vac / 50-60Hz
  • 1800W: 200-220Vac / 50-60Hz
  • 1980W: 220-230Vac / 50-60Hz
  • 2090W: 230-240Vac / 50-60Hz
  • 2090W: 180-220Vac (for UL/cUL only)
  • 2200W: 220-240Vac (for UL/cUL only)
  • 2090W: 230-240Vdc (for CCC only)
+12V
  • Max: 100A / Min: 0A (100-127Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 174.17A / Min: 0A (230-240Vac)
  • Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)
  • Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)
  • Max: 174.17A / Min: 0A (230-240Vdc, CCC only)
+12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • Gold Finger
Certification
  • Titanium Level96% Titanium Level
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C ~ 30°C (50°F ~ 86°F)
    * Support for operating above 30°C is available in certain system configurations.
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
