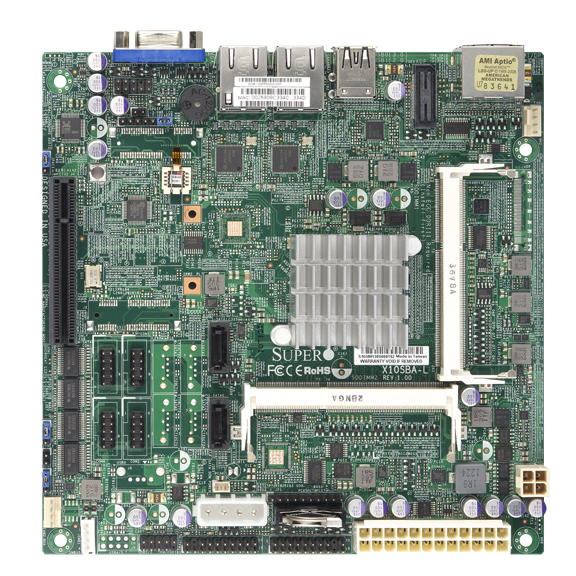

Supermicro X10SBA-L

1. Intel Celeron J1900 (10W, 4C)
2. Intel Silvermont microarchitecture 22nm System-on-Chip
3. Up to 8GB 1333MHz DDR3L Non-ECC SO-DIMM in 2 socket
4. 1x PCI-E x2, 2 x SATA 2.0
5. Intel HD Graphics with HDMI, Display port and VGA
6. Intel i210AT dual port GbE LAN
7. 1x USB 3.0 ports and 3x USB 2.0 ports
8. 4x COM ports
9. 1x DOM power connector
10. 12V DC or ATX power source
11. Operating Temperature: 0°C - 60°C

Price available upon request.

Product Specifications

Product SKUs
 Bulk Pack
  • MBD-X10SBA-L-B
 Retail Pack
  • MBD-X10SBA-L-O
Physical Stats
Form Factor
  • Mini-ITX
Dimensions
  • 6.7" x 6.7" (17cm x 17cm)
Processor/Cache
CPU
  • Socket FCBGA1170
  • Intel Celeron Processor J1900
  • 2M Cache, up to 2.42 GHz, 8W (formerly Bay Trail)
System Memory
Memory Capacity
  • 2x 204-pin SO-DIMM socket
  • Supports up to 8GB non-ECC DDR3 1333MHz memory (Dual Channel)
  • Some 1600MHz memory can be used, but memory capacity will operate at 1333MHz
Memory Type
  • 1333/1066MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs
DIMM Sizes
  • 4GB, 2GB
Memory Voltage
  • 1.35 V
On-Board Devices
Chipset
  • Intel J1900 System on Chip
SATA
  • SATA 2.0 (3Gbps) from Intel® SoC
Network Controllers
  • Dual Intel® I210-AT Gigabit Ethernet LAN ports
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics
  • Intel HD Graphics
Audio
  • Realtek ALC888S-VD2 HD Audio
Input / Output
SATA
  • 2x SATA2 (3Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
USB
  • 1x USB 3.0 port
  • 3x USB 2.0 ports (1 via rear, 2 via headers)
Audio
  • Audio header
DOM
  • DOM power connector support (Disk on Module)
TPM
  • TPM 1.2 header
Video
  • HDMI, DisplayPort, VGA
  • 2x independent displays
Serial Port
  • 4x COM ports in headers
Chassis
1U Chassis
Mid/Mini Tower Chassis
  • SC721TQ-250B
Mini-ITX Chassis
  • SC101i
  • SC101S
Expansion Slots
PCI-Express
  • 1x PCI-E x2 (in x8) slot
System BIOS
BIOS Type
  • 64Mb SPI Flash EEPROM with AMI UEFI BIOS
BIOS Features
  • Plug and Play (PnP)
  • ACPI 5.0
  • UEFI 2.3.1
  • SMBIOS 2.7
  • DMI 2.3
  • USB Keyboard support
  • RTC (Real time Clock) Wakeup
  • 3TB HDD Support
Management
Software
  • SuperDoctor 5
  • Watch Dog
Power Configurations
  • ACPI / ACPM Power Management
  • Main Switch Override Mechanism
  • Keyboard Wakeup from Soft-Off
  • Power-on mode for AC power recovery
PC Health Monitoring
FAN
  • 2x fans with tachometer status monitoring
  • Status monitor for speed control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
LED
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
Operating Environment
Operating Temperature Range
  • 0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range
  • -20°C ~ 60°C (-4°F ~ 140°F)
Operating Relative Humidity Range
  • 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range
  • 10% ~ 95% (non-condensing)

How to Order

To place an order, please make an enquiry using the 'Request More Information' form at the bottom of the page and one of our experienced sales team will contact you shortly.

Alternatively, you can call or email us and speak to one of our experienced technical sales team.

Tel: 01438 842 300
Email: sales@tmc-uk.com

There are no downloads available.
