| System Mainboard |
|---|
| IB922 |
| CPU Type |
|---|
| AMD G-Series; Quad-Core @ 1.5GHz APU |
| CPU Socket |
|---|
| FT3 BGA package |
| Chipset |
|---|
| SoC Integrated |
| Memory |
|---|
| 1x DDR3 1600 MHz SO-DIMM, Max. 8GB (Non-ECC) |
| Graphics |
|---|
AMD Radeon HD8330E graphics processing system integrated in APU
|
| LAN |
|---|
| 1x GbE (Realtek RTL 8111DP) |
| Expansion Slots |
|---|
| 1x mPCIe(x1) for WiFi + Bluetooth, 3G, and TV tuner options 1x UIM/SIM card slot (for 3G/LTE adapter in mPCIe slot) |
| I/O Interface |
|---|

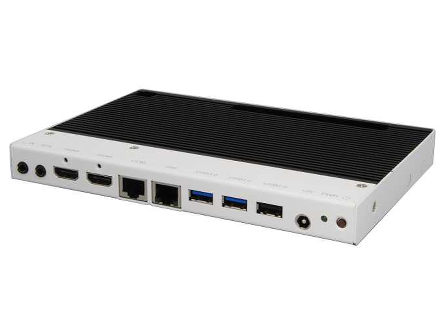

| 2x HDMI 1.4a 2x USB 3.0 ports, 1x USB 2.0 port 1x RJ45 for LAN, 1x RJ45 for RS232 2x Microjack audio connectors for Line-in / Line-out Power LED, 1x power on/off button 1x DC jack |
| Auto Control and Monitoring |
|---|
| Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min) |
| Power Requirement |
|---|
| +12V DC-in |
| Construction |
|---|
| Aluminum + SGCC |
| Weight |
|---|
| 0.9Kg (1.98lbs) |
| Chassis Colour |
|---|
| Black / White |
| Storage |
|---|
| 1x mSATA |
| Power Supply |
|---|
| 60W power adaptor |
| Mounting |
|---|
| Standard system bracket |
| Dimensions |
|---|
| 190mm(W) x 130mm(D) x 19.5mm(H) 7.48”(W) x 5.12”(D) x 0.77”(H) |
| Operating Temperature |
|---|
| 0°C~ 45°C (32°F~113°F) |
| Storage Temperature |
|---|
| -20°C ~ 80°C (-4°F~176°F) |
| Relative Humidity |
|---|
| 5~90% @ 45°C, (non-condensing) |
| Vibration |
|---|
| mSATA: 5 grms / 5~500Hz / random operation |
| Certification |
|---|
| CE, FCC class B, VCCI class B, cULus, CCC |
