Supermicro Hadoop Solutions

Utilizing big data analytics is no longer a question of when, but how. Enterprises deploying Hadoop solutions need a high performance, scalable and reliable infrastructure and can expend a large amount of resource searching for the best architecture and the most capable solution provider.  The Supermicro Hadoop Solutions are certified server, storage, networking, software and service configurations that take the guess work out of designing and deploying a truly scalable Big Data infrastructure.



Key Benefits

  • Designed ground up with optimal server and cluster configurations
  • Best price/performance and price/capacity with industry leading server and storage platforms
  • Advanced architecture based on the latest technologies, e.g. Xeon E5-2600 v3, SAS3, NVMe



Supermicro Hadoop Cluster Solution Offerings

7 Different customized cluster configurations to deliver optimized performance for your Big Data Solution:

  • PoC Cluster
  • High Capacity Cluster
  • IO Optimized Cluster
  • High Density Compute Cluster
  • Large Memory & Storage Cluster
  • Balanced Cluster
  • Large Memory Cluster



Hadoop Cluster Technical Specifications

 FeaturePoC ClusterHigh Capacity ClusterIO Optimized ClusterHigh Density Compute Cluster Large Memory & Storage Cluster Balanced Cluster  Large Memory Cluster
Model / SKU

SRS-14TP08-HADP-01

SRS-42SG18-HADP-01

SRS-42SG18-HADP-02

 SRS-42FT36-HADP-01  SRS-42FT36-HADP-02 SRS-42TP36-HADP-01   SRS-42TP36-HADP-01
Data Node 8 18 18 36 36 36 34
Form Factor 2U TwinPro 2U SSG 4U FatTwin   2U TwinPro
2
E5-2630 v4
2
E5-2630 v4
2
E5-2650 v4
 2
E5-2680 v4
2
E5-2650 v4
2
E5-2630 v4
2
E5-2650 v4
128GB 128GB 128GB 128GB   256GB  128GB 128GB   256GB
6 Bay 3.5" 16 Bay 3.5" 24 Bay 2.5" 8 Bay 3.5"  8 Bay 3.5"  6 Bay 3.5"  12 Bay 2.5"
Total Data Drive 48

288

432 288  288  216  408
Total Cores

160

360

432

1008  864  720  816
Total Memory 1TB 2.3TB 2.3TB 4.6TB  9.2TB  4.6TB  8.7TB
Total Storage 192TB (4TB) 1.72PB (6TB)

864TB (2TB)

1.15PB (4TB)  1.72PB (6TB)  1.72PB (6TB)  816TB (2TB)
Name Node 2x 1U WIO 3x 1U WIO

3x 1U WIO

3x 1U WIO 3x 1U WIO 3x 1U WIO 3x 1U WIO
Management Node 1x 1U WIO 1x 1U WIO 1x 1U WIO 1x 1U WIO 1x 1U WIO 1x 1U WIO 1x 1U WIO
Switches 1x 24PT GbE 1x 48PT GbE 1x 48PT GbE 1x 48PT GbE

1x 48PT 10GBase-T

1x 48PT10G SFP+

2x 48PT 10G SFP+

 Cabinet (WxHxD)  14U
21.6x30.6x37.4
      42U
23.5x 82.4x 48
PDU 1x2U 30A 2x 50A 208 3-Phase Metered PDU





Server Specifications

Find Your System

  • Matching
  • 6

Show

per page

Supermicro 6028R-E1CR16T

The Supermicro Ultra SuperServer 6028R-E1CR16T is a 2U Rack Server with 2 system nodes, 6x 3.5" SAS3/NVMe Hot-Swap Bays, 1600W redundant power supplies

Features:

  • Chassis Size: 2U
  • Socket Type: LGA-2011
  • CPU Qty: 2
  • Number of Hotswaps: 16
  • HDD Caddy Size: 3.5
  • Controller Type: 12 Gbps Sas
Price available upon request. View More

Supermicro 2028TP-DC1R

The Supermicro Ultra SuperServer 2028TP-DC1R is a 2U Rack Server with Redundant Power, 12x 2.5" SATA/NVMe Hot-Swap Bays, 1280W redundant power supplies.

Features:

  • Socket Type: LGA-2011
  • CPU Qty: 2
  • Barebone Size: 2U
  • Number of Hotswaps: 12
  • HDD Caddy Size: 2.5
  • Number of Nodes: 2
Price available upon request. View More

Supermicro 6028R-E1CR12L

The Supermicro Ultra SuperServer 6028R-E1CR12L is a 2U Storage Server with 12x 3.5" Hot-swap drive bays, 3x 8cm hot-swap redundant PWM cooling fans and 920W Redundant Power Supplies.

Features:

  • Chassis Size: 2U
  • Socket Type: LGA-2011
  • CPU Qty: 2
  • Number of Hotswaps: 12
  • HDD Caddy Size: 3.5
Price available upon request. View More

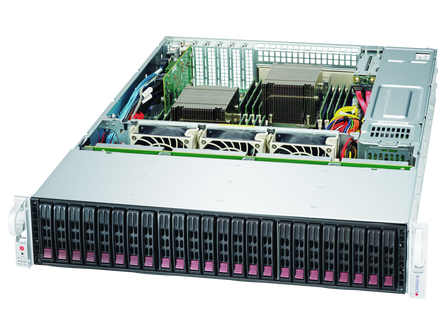

Supermicro 2028R-E1CR24L

The Supermicro 2028R-E1CR24L is a 2U Storage Server with 24 Hot-swap drive bays, 3 Hot-swap 8cm redundant PWM fans and 920W Redundant Power Supplies.

Features:

  • Chassis Size: 2U
  • Socket Type: LGA-2011
  • CPU Qty: 2
  • Number of Hotswaps: 24
  • HDD Caddy Size: 2.5
Price available upon request. View More

Supermicro 1028R-WC1R

The Supermicro 1028R-WC1R is a 1U Rack Server with 24 Hot-swap drive bays, 3 Hot-swap 8cm redundant PWM fans and 920W Redundant Power Supplies.

Features:

  • Chassis Size: 1U
  • Socket Type: LGA-2011
  • CPU Qty: 2
  • Number of Hotswaps: 10
  • HDD Caddy Size: 2.5
Price available upon request. View More

Supermicro 1018R-WC0R | Call Today | TMC UK

The Supermicro 1018R-WC0R is a 1U Rack Server with 10 Hot-swap drive bays, 3 Hot-swap 8cm redundant PWM fans and 750W Redundant Power Supplies.

Features:

  • Chassis Size: 1U
  • Socket Type: LGA-2011
  • CPU Qty: 2
  • Number of Hotswaps: 10
  • HDD Caddy Size: 2.5
Price available upon request. View More
