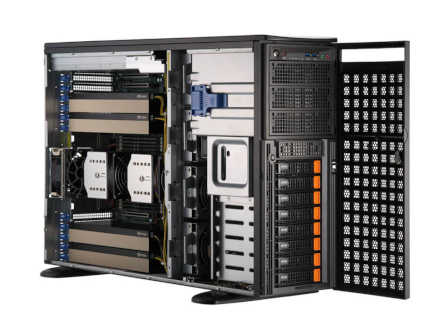

Supermicro SYS-741GE-TNRT GPU Workstation Platform

GPU Workstation Platform for AI & Visual Computing

Designed for AI development, advanced visualisation, rendering and high-performance computing, this enterprise GPU workstation platform combines dual Intel® Xeon® Scalable processors with support for up to four double-width NVIDIA GPUs.

GPU Acceleration

Supports up to 4 double-width PCIe GPUs for AI, rendering, simulation and visualisation workloads.

PCIe 5.0 Architecture

High-bandwidth expansion for GPUs, NVMe storage and professional accelerator hardware.

Enterprise Memory

DDR5 ECC memory support for demanding datasets, AI models and professional applications.

NVMe Storage Ready

Flexible high-speed storage support for media, project files and data-intensive workflows.

Ideal Applications

Built for organisations deploying local AI infrastructure, creative production systems and professional GPU-accelerated workloads.

Artificial intelligence and deep learning
3D rendering and visualisation
Media and video production
Digital twin and simulation workloads
Scientific computing and HPC
Virtual desktop infrastructure

Platform Highlights

Processors	Dual Intel® Xeon® Scalable processors
GPU Support	Up to 4 double-width PCIe GPUs
Memory	DDR5 ECC memory support
Expansion	PCIe 5.0 expansion architecture
Networking	Dual 10GbE LAN
Deployment	Tower GPU workstation platform

Enterprise GPU Performance

A powerful platform for teams needing workstation flexibility with datacentre-class GPU acceleration, supporting modern AI, rendering, simulation and visual computing workflows.

Price available upon request.

Product Specifications

Product SKUs

SYS-741GE-TNRT

GPU SuperServer SYS-741GE-TNRT

Motherboard

Super X13DEG-QT

Processor

CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count	Up to 64C/128T; Up to 320MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Air Cooled)

GPU

Max GPU Count	Up to 4 double-width GPUs
Supported GPU	NVIDIA PCIe: H100, H100 NVL, A100, A30, L4, L40, L40S, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, RTX 4000 Ada Generation, RTX 6000 Ada Generation, RTX A4000, RTX A5500, RTX A6000 AMD PCIe: Instinct™ MI210
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink™ Bridge (optional)
Certification	NVIDIA Certified

System Memory

Memory	Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM
Memory Voltage	1.1V

On-Board Devices

SATA	SATA (6Gbps)
Chipset	Intel® C741
Network Connectivity	2 RJ45 10GbE with Intel® X550-AT2

Input / Output

Video	1 VGA port (Rear)
Serial	1 COM port (Rear)
Audio	Front Audio
TPM	1 TPM Onboard/port 80

System BIOS

BIOS Type

AMI 32MB SPI Flash EEPROM

Management

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power Configurations	Power-on mode for AC power recovery ACPI Power Management

Security

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring

CPU	8+4 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis

Form Factor	Tower Rackmount
Model	CSE-749TS-R2K05BP

Dimensions and Weight

Height	18.32" (465.4 mm)
Width	6.96" (177 mm)
Depth	26.71" (678.5 mm)
Package	12.59" (H) x 26.85" (W) x 37.95" (D)
Weight	Gross Weight: 62 lbs (28.1 kg) Net Weight: 46 lbs (20.9 kg)
Available Colour	Black

Front Panel

Buttons	Power On/Off button System Reset button
LED	Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED

Expansion Slots

PCI-Express (PCIe) Configuration	Default 7 PCIe 5.0 x16 FHFL slots
M.2	2 M.2 PCIe 5.0 x4 NVMe slots (M-key)

Drive Bays / Storage

Drive Bays Configuration	Default: Total 8 bays 8 front hot-swap 3.5" NVMe/SAS/SATA drive bays Option A: Total 8 bays 8 front hot-swap 2.5" NVMe/SAS/SATA drive bays
M.2	2 M.2 NVMe slots (M-key)

System Cooling

Fans

Up to 4 heavy duty fans with optimal fan speed control

Power Supply

2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)	73.5 x 40 x 265 mm
Input	100-127Vac 200-240Vac 1000W: 100-120Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 230-240Vac / 50-60Hz 2000W: 200-240Vac / 50-60Hz (for UL/cUL only)
+12V	Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 83.3A / Min: 0A (100Vac-120Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166.7A / Min: 0A (200Vac-240Vac)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (gold finger)

Operating Environment

ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)
