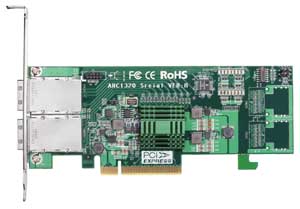

Areca ARC-1320-8X

The ARC-1320 series is a low profile host adapter. It brings the fastest available connections to 6Gb/s and 3Gb/s SAS/SATA interface storage on any computer, workstation and server with PCI Express 2.0 interface.

Price available upon request.

Product Specifications

Hardware Specification

PCIe x8 lane   2.0 bus ( x8, x4, and x1 lane widths)

Up to 6Gb/s   transfer rates per SAS port

Support 1.5, 3.0 and 6 Gb/s SAS and SATA link rates

Support a   maximum 128 SAS/SATA devices using SAS  Expander

Available in a   low-profile form factor

Low-profile   bracket

BIOS PnP(plug   and play) and BBS(BIOS boot specification) support

Legacy BIOS and   EFI support

RoHS compliant

Serial ATA 6Gb/s (Direct Attach Only)

6Gb/s compliant   with speed negotiation to 3Gb/s and 1.5 Gb/s

Support Native   Command Queuing (NCQ)

Support Port   Multiplier

Out-of-Band Manager
Not Availible
Environmental/Physical

Dimension:

ARC-1320-8i/8x/4i4x:   64(H) x 167(L) mm



ARC-1320ix-16:   64(H) x 214(L) mm

Serial Attached SCSI (SAS) 6Gb/s

Serial Attached   SCSI (SAS-2.0) compliant

Supports wide   port (Any combination of x1, x2, and 4x)

Supports Serial   SCSI Protocol (SSP)

Supports SAS   Management Protocol (SMP)

Supports Serial   ATA Tunneling Protocol (STP)

Hot-plug   capability

Staggered   spin-up control

RAID Management

Legacy BIOS   setup utility

Supports   Command Line Interface (CLI)

API library for   customer to write monitor utility

Enclosure   management for internal port via LED header and SES/SGPIO

Enclosure   management for external port via SAS expander

In-Band Manager
Not Availible
Operating System

Windows 8,   server 2012, 7, 2008, Vista, 2003 and XP

Linux (Red Hat   and SuSE)

FreeBSD

Solaris 10/11   x86/x86-64

illumos   x86/x86-64

Mac OS   X 10.5.x or Higher

Environmental Specifications :

Operating:

Temperature:+5°c   to +60°c



Humidity:   15-80%



non-condensing



Storage   Temperature:

Temperature:-40°c   to 70°c
