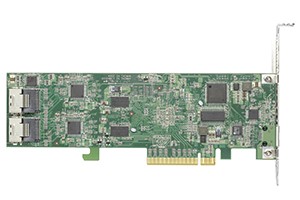

Areca ARC-1264IL-16

ARM_based   933MHz storage processor

1GB on-board   DDR3-933 SDRAM with ECC protection

PCIe 2.0 x8   lanes host interface

ARC-1264il-12/16   supports up to 12/16 x 6Gb/s SATA HDDs

ARC-1284Ml-24   supports up to 24 x 6Gb/s SATA HDDs

Multi-adapter   support for large storage requirements

BIOS boot   support for greater fault tolerance

BIOS PnP (plug   and play) and BBS (BIOS boot specification) support

Support EFI   BIOS for Mac Pro

NVRAM for RAID   event & transaction log

Redundant flash   image for adapter availability

Battery Backup   Module (BBM) ready (Optional)
  Model: ARC-6120BA-T121

RoHS Compliant

System status indication through global HDD activity/fault con-   nector, individual fault connector, LCD/serial bus connector and alarm buzzer

SMTP support   for email notification

SNMP support   for remote manager

Enclosure   management (Serial bus & SGPIO) ready

Firmware-embedded   web browser-based McRAID storage man- ager, SMTP manager, SNMP agent and   Telnet function via Ethernet port

API library for   customer to write monitor utility

Support push   button and LCD display panel (Optional)

Operating:

Temperature:   +5°c to +60°c

Humidity:   15-80%, non-condensing

Storage:

Temperature:   -40°c to 70°c

Humidity:   5-90%, non-condensing

RAID level 0,   1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD

Multi-level   RAID 0 and RAID 10 (R00 and R100)

Support up to   1MB stripe size

Multiple RAID   selection

Online array   roaming

Online RAID   level/stripe size migration

Online capacity   expansion and RAID level migration simultaneously

Online volume   set growth

Instant   availability and background initialization

Support global   and dedicated hot spare

Automatic drive   insertion/removal detection and rebuilding

Greater than   2TB capacity per disk drive support

Greater than   2TB per volume set (64-bit LBA support)

Support   intelligent power management to save energy and extend service life

Multiple pairs   SSD/HDD disk clone function

SSD automatic   monitor clone (AMC) support

Hot key   "boot-up" McBIOS RAID manager via M/B BIOS

Web   browser-based McRAID storage manager via ArcHttp proxy server for all   operating systems

Support Command   Line Interface (CLI)

API library for   customer to write monitor utility

Single Admin   Portal (SAP) monitor utility

Windows   8/server 2012/7/2008/Vista/XP/2003

Linux (RedHat,   SuSE, Debian, Mandrake, TurboLinux, CentOS, etc.)

FreeBSD

VMware (only   driver package available w/o in-band management utility)

Solaris 10/11   x86/x86_64

Mac OS   X 10.5.x or Higher
