* Required Fields
| Form Factor |
|---|
| 2U |
| Dimensions (Dx Wx H) |
|---|
| 660 x 430 x 88 (mm), 26” x 16.9” x 3.5” |
| PSU Form Factor |
|---|
| 2U Single or 1+1 Redundant |
| Front Buttons |
|---|
| Power On/Off, Alarm Mute, System Reset, 1 x USB2.0 |
| Cooling Fans |
|---|
| Middle: 4 x 80mm , Rear: 2 x 40mm (Option) |
| HDD Backplane |
|---|
| 12Gb/s SATA or mini-SAS |
| Front Bezel |
|---|
| Option |
| Weights |
|---|
|
| M/B Form Factor |
|---|
| Extended ATX (12” x 13”) |
| Drive Bays |
|---|
| External 5.25"：1 External 3.5"：1 3.5" Hot-swap：6 Internal 3.5"：1 |
| Indicators |
|---|
| 1 x Power Status, 1 x HDD Activity, 2 x LAN Activity , 1 x Fan Failure and Overheat |
| System Security |
|---|
| Intrusion Switch |
| Expansion Slots |
|---|
| 3 x Full Height and Full Length or 6 x Low Profile |
| Metal Thickness |
|---|
| 1.2mm |
| Cubic Feet |
|---|
| 4.26 |
| Container Loading (Single Packing) |
|---|
| 20’: 250, 40’: 520, 40’H: 575 |
To place an order, please make an enquiry using the 'Request More Information' form at the bottom of the page and one of our experienced sales team will contact you shortly.
Alternatively, you can call or email us and speak to one of our experienced technical sales team.
Tel: 01438 842 300
Email: sales@tmc-uk.com
There are no downloads available.

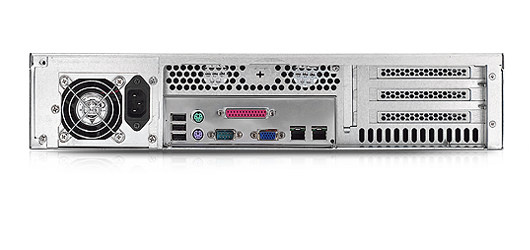

Chenbro RM21706T2-L configured with:
No configuration yet
