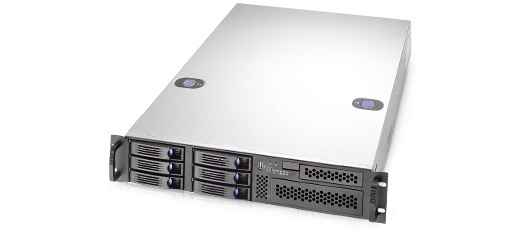

Chenbro RM21706T3-L

Supports M/B up to 12" x 13"
Supports 12Gb/s SATA SAS backplanes
HDD carrier for 2.5" or 3.5" drive
Optional 4x Hot-swap fan modules
Exposed 1x 5.25" and 1x 3.5" bays

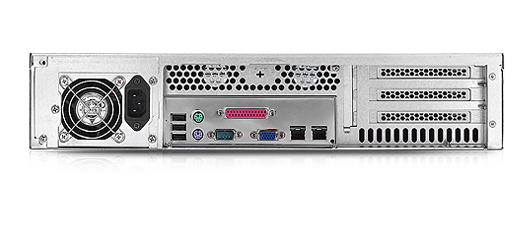

Supports 3-slot full height and 6-slot low profile rear windows
Supports 2U Single or 1+1 Redundant PSU

Loading The product configurator is being loaded...

* Required Fields

Product Specifications

Form Factor
2U
Dimensions (Dx Wx H)
660 x 430 x 88 (mm), 26” x 16.9” x 3.5”
PSU Form Factor
2U Single or 1+1 Redundant
Front Buttons
Power On/Off, Alarm Mute, System Reset, 1 x USB2.0
Cooling Fans
Middle: 4 x 80mm , Rear: 2 x 40mm (Option)
HDD Backplane
12Gb/s Mini HD SATA /SAS
Front Bezel
Option
Weights
Net Weight 9.5kg
Gross Weight 13.4kg
M/B Form Factor
Extended ATX (12” x 13”)
Drive Bays
External 5.25":1
External 3.5":1
3.5" Hot-swap:6
Internal 3.5":1
Indicators
1 x Power Status, 1 x HDD Activity, 2 x LAN Activity , 1 x Fan Failure and Overheat
System Security
Intrusion Switch
Expansion Slots
3 x Full Height and Full Length or 6 x Low Profile
Metal Thickness
1.2mm
Cubic Feet
4.26
Container Loading (Single Packing)
20’: 250, 40’: 520, 40’H: 575
