RM23616

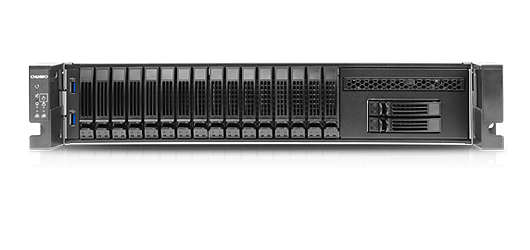

Supports 16-bay 2.5" HDD configuration and removable drive cage of two 2.5" bay and one slim ODD

Supports 12Gb/s 16-port backplane with SAS expander board

Anti-vibration and hot-swap middle fans with smart speed control (on SAS expander board)

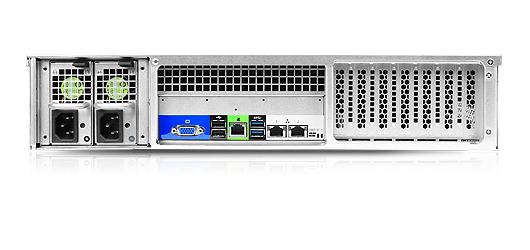

Easy-swap 3-slot(Riser) or 7-slot(Low profile) rear window

Supports 2U single or 1+1 redundant PSU



Price available upon request.

Product Specifications

Form Factor
2U
Dimensions (Dx Wx H)
660mm x 430mm x 88mm, 26” x 16.9” x 3.5”
PSU Form Factor
2U Single or 1+1 Redundant
Front Buttons
Power On/Off, Alarm Mute, System Reset, 2x USB 3.0
Cooling Fans
Middle: 3x 80mm (Up to T=38mm), PWM, Rear: 2x 40mm (Option)
HDD Backplane
12Gb/s mini-SAS HD with expander module
Front Bezel
N/A
Weights

Net Weight = 11kg

Gross Weight = 12.7kg

M/B Form Factor
Extended ATX(12” x 13”)
Drive Bays
2.5" Hot-swap:16
2.5" Hot-swap:2
Slim ODD:1
Internal 2.5":2
Indicators
1x Power Status, 2x LAN Activity, 1x Fan Failure & Overheat
System Security
Intrusion Switch (Option)
Expansion Slots
3x full height and length or 7x low profile
Metal Thickness
1.2mm
Cubic Feet
4.98
Container Loading (Single Packing)
20':314, 40':638, 40'H:690

How to Order

To place an order, please make an enquiry using the 'Request More Information' form at the bottom of the page and one of our experienced sales team will contact you shortly.

Alternatively, you can call or email us and speak to one of our experienced technical sales team.

Tel: 01438 842 300
Email: sales@tmc-uk.com

Product Attachments

View File23616 Data sheet    Size: (1.25 MB)

Data sheet
