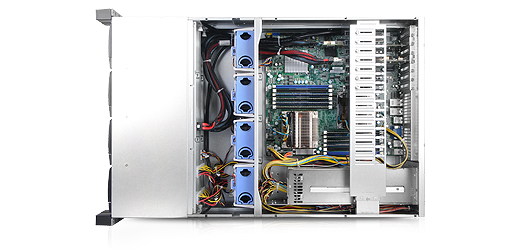

Chenbro RM41824E2-R960G

Supports M/B size up to 12" x 13"
12Gb/s mini-SAS backplane with expander and SES2 support
Optional rear 2 x 80mm exhausted fans
Sturdy chassis structure through side-folded
Supports modular 2.5"/3.5" 12-bay and 24-bay HDD cages
Card retainer to hold low profile and full height add-on cards
Built-in 4 x 80mm hot-swap PWM fans
Complete with 960w 1+1 PSU + Rails

Loading The product configurator is being loaded...

* Required Fields

Product Specifications

Form Factor
Dimensions (Dx Wx H)
698 x 432 x 176 (mm), 27.5” x 17” x 6.9”
PSU Form Factor
960w  2+1 Redundant
Front Buttons
Power On/Off, Alarm Mute, System Reset, 2 x USB 2.0
Cooling Fans
Middle: 4 x 80mm (T=38mm), PWM, Hot-swap , Rear: 2 x 80mm (Option)
HDD Backplane
12Gb/s mini-SAS with expander on-board
Front Bezel
Net Weight 37.0kg
Gross Weight 38.0kg
M/B Form Factor
Extended ATX (12”x13”)
Drive Bays
3.5" Hot-swap: 24
1 x Power Status
1 x HDD Activity
2 x LAN Activity
1 x Fan Failure and Overheat
System Security
Intrusion Switch
Expansion Slots
7 x Full Height and Full Length
Metal Thickness
Cubic Feet
Container Loading (Single Packing)
20’: 105, 40’:215, 40’H: 258

How to Order

To place an order, please make an enquiry using the 'Request More Information' form at the bottom of the page and one of our experienced sales team will contact you shortly.

Alternatively, you can call or email us and speak to one of our experienced technical sales team.

Tel: 01438 842 300

There are no downloads available.
