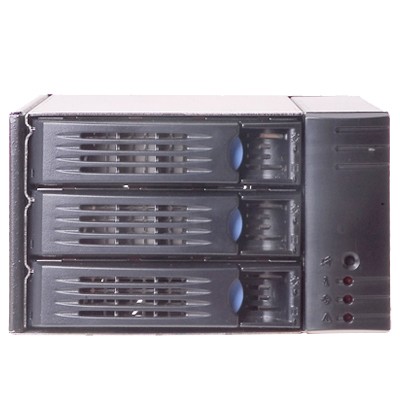

SK32303

1. Fits chassis with two 5.25" drive bays

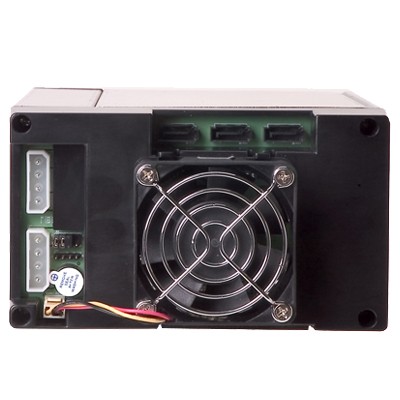

2. Back-mounted 60mm fan to deliver optimized cooling performance

3. HDD failure and activity indicators on each hot-swap drive carrier

4. Supports inrush current control for drive hot-swapping

5. Alternative HDD activity and failure single input sources

6. Built-in temperature sensor and overheat warning system

Price available upon request.

Product Specifications

Product SKUs
SK32303
Dimensions (Dx Wx H)
218.7 x 146 x 84.4 (mm) 8.61" x 5.8" x 3.32"
Drive Bays
3.5" SATA/SAS HDD Tray x 3
Indicators
Power On/Off, Overheat/Fan Failure and e HDD Failure
Front Buttons
Alarm Mute
Cooling Fans
1 x 60 mm (T = 25 mm) rear fan
Backplane
3-Port, 6Gb/s SATA & SAS
Connectors (To Drive)
3 x (22+7) pins SAS connectors
Connectors (To Host)
3 x 7 pins SAS connectors
Net Weight
1.4 Kg

How to Order

To place an order, please make an enquiry using the 'Request More Information' form at the bottom of the page and one of our experienced sales team will contact you shortly.

Alternatively, you can call or email us and speak to one of our experienced technical sales team.

Tel: 01438 842 300
Email: sales@tmc-uk.com

There are no downloads available.
