SK33502

1. Fits chassis with three 5.25" drive bays

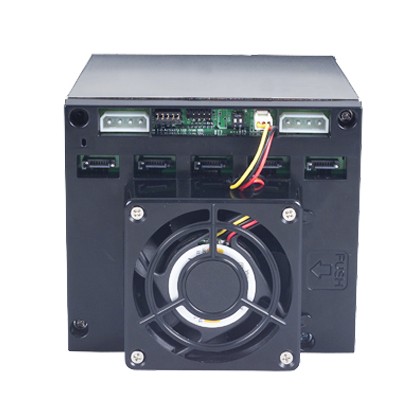

2. Back-mounted 80mm fan to deliver optimized cooling performance

3. Two front access USB ports

4. HDD failure and activity indicators on each hot-swap drive carrier

5. Supports inrush current control for drive hot-swapping

6. Alternative HDD activity and failure single input sources

7. Built-in temperature sensor and overheat warning system

Price available upon request.

Product Specifications

Product SKUs
SK33502
Dimensions (Dx Wx H)
218.5 x 146 x 127.3 (mm) 8.6" x 5.8" x 5"
Drive Bays
3.5" SATA/SAS HDD Tray x 5
Indicators
Power On/Off, Overheat/Fan Failure and e HDD Failure
Front Buttons
Alarm Mute, 2 x USB 2.0 Ports
Cooling Fans
1 x 80 mm (T = 32 mm) rear fan
Backplane
6Gb/s SAS & SATA
Connectors (To Drive)
5 x (22+7) pins SAS connectors
Connectors (To Host)
5 x 7 pins SAS connectors
Net Weight
2.23Kg
