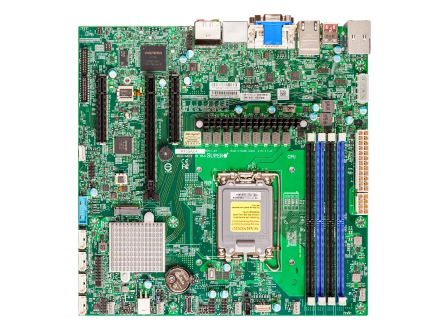

Supermicro X13SAZ-Q

1. 12th Generation Intel Core i9/i7/i5/i3/Pentium/Celeron Processor, Single Socket LGA-1700 supported, CPU TDP supports Up to 125W TDP
2. Intel Q670E
3. Up to 128GB Unbuffered non-ECC UDIMM, DDR5-4400MHz, in 4 DIMM slots
4. 1 PCI-E 5.0 x16 slot,
2 PCI-E 4.0 x4 slots,
1 PCI-E 4.0 x4 OCulink port
M.2 Interface: 1 PCI-E 4.0 x4
M.2 Form Factor: 2280/22110
M.2 Key: M-Key
5. Dual 2.5 Gigabit LAN with Intel Ethernet i225LM LAN controller [AMT/vPro]
6. 2 DP++ ports, 1 HDMI 2.0b port, 1 DVI - D port
7. Intel Q670E Controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
8. Supports 12V DC power input
9. Onboard TPM2.0

Price available upon request.

Product Specifications

Product SKUs
MBD-X13SAZ-Q
  • X13SAZ-Q
Physical Stats
Form Factor
  • Micro ATX
Dimensions
  • 9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU
  • 12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
  • Single Socket LGA-1700 supported
Core
  • Up to 16 cores
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 128GB UDIMM, DDR5-4400MHz
  • *Supports up to 128GB of DDR5 UDIMM with speeds of up to 4400MT/s with one DIMM, or 4000MT/s with two DIMM single rank, or 3600MT/s with two DIMM dual rank in four memory slots
Memory Type
  • 4400/4000/3600MHz
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • Intel Q670E
SATA
  • Intel Q670E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Audio
  • ALC 888S HD Audio
Network Controllers
  • Dual LAN with Intel® Ethernet i225LM
Input / Output
SATA
  • 4 SATA3 (6Gbps) port(s)
USB
  • 2 USB 2 port(s) (2 via header)
  • 6 USB 3.1 Gen2 port(s) (2 via header; 4 rear type A)
  • 2 USB 3.1 Gen1 port(s) (2 via header)
Video Output
  • 1 DVI - D port(s), 1 HDMI 2.0b port(s), 2 DP (DisplayPort) port(s)
Serial Port
  • 4 COM Port(s) (2 header RS232/422/485; 2 header RS232)
TPM
  • TPM Header & Chip both
Expansion Slots
PCI-E
  • 1 PCI-E 5.0 x16,
  • 2 PCI-E 4.0 x4 (in x8 slot)
 M.2
  • M.2 Interface: 1 PCI-E 4.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.1
  • SMBIOS 3.0 or later
  • PCI FW 3.0
  • UEFI 2.7
  • RTC (Real Time Clock) Wakeup
Management
Software
  • SuperDoctor® 5, AMT, vPro
System Management Software
  • Wake-on-LAN, Watchdog
Power Configurations
  • ACPI Power Management, ATX Power connector, +12V DC Power Input
PC Health Monitoring
Voltage
  • VBAT, 4 fans with tachometer monitoring, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V
LED
  • Power LED
Temparature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
Other Features
  • RoHS, M.2 NGFF connector, Chassis intrusion detection, ATX Power connector, ACPI power management, 12V DC or ATX Power Source
FAN
  • 5x 4-pin fan headers (up to 5 fans)
Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
