| Product SKUs |
|---|

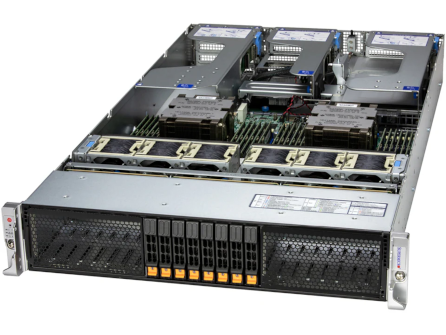

| AS-2126HS-TN | EPYC NVMe Server |
| AS-2126HS-TN-01-G2 | Gold Series version with pre-configured components |
| Motherboard |
|---|
| Super H14DSH |
| Processor |
|---|
| CPU | Dual processor(s) AMD EPYC™ 9005/9004 Series Processors |
| Core Count | Up to 384C/768T |
| Note | Supports up to 500W TDP CPUs* *Air Cooled CPUs with TDP over 400W only supported under specific conditions. Contact a Supermicro representative for details. |
| GPU |
|---|
| Maximum GPU Count | Up to 3 double-width GPUs |
| Supported GPU | NVIDIA PCIe: H100 NVL, A16, L4, L40, L40S, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, RTX 2000 Ada, RTX 4500 Ada, RTX 5000 Ada, RTX 6000 Ada Generation AMD PCIe: Instinct™ MI210 |
| GPU-GPU Interconnect | PCIe |
| System Memory |
|---|
| Memory | Slot Count: 24 DIMM slots Maximum Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) Maximum Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor) |
| Memory Voltage | 1.1V |
| On-Board Devices |
|---|
| Network Connectivity | Via AIOM |
| IPMI | Support for Intelligent Platform Management Interface v2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
|---|
| LAN | 1 RJ45 1GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports (rear) |
| Video | 1 VGA port |
| TPM | 1 TPM Onboard/Port 80 |
| System BIOS |
|---|
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| BIOS Features | Plug and Play (PnP) UEFI 2.8 USB Keyboard support ACPI 6.5 SMBIOS 3.7 or later |
| Management |
|---|
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) KVM with dedicated LAN IPMI 2.0 Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! IPMIView |
| Power Configurations | ACPI/APM Power Management Power-on mode control for AC power loss recovery Power button override mechanism |
| Security |
|---|
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring |
|---|
| Fan | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
| Chassis |
|---|
| Form Factor | 2U Rackmount |
| Model | CSE-HS201-R000NFP |
| Dimensions and Weight |
|---|
| Height | 3.5" (88.9 mm) |
| Width | 17.2" (437 mm) |
| Depth | 31.74" (806.2 mm) |
| Package | 9.96" (H) x 26.46" (W) x 43.31" (D) |
| Weight | Gross Weight: 75 lbs (34 kg) Net Weight: 45 lbs (20.5 kg) |
| Available Colour | Silver |
| Front Panel |
|---|
| Buttons | Power On/Off UID button |
| LED | HDD activity LAN1 activity Power status System information |
| Expansion Slots |
|---|
| PCI-Express (PCIe) Configuration | Option A* 4 PCIe 5.0 x16 FHFL double-width slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option B* 8 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) (*Requires additional parts. Please see the optional parts list for details. For further information on PCIe slot configuration options, please refer to the system callout images above.) |
| CXL Support | Up to 4 CXL 2.0 x16 devices |
| Drive Bays / Storage |
|---|
| Drive Bays Configuration | Default: Total 8 bays 8 front hot-swap 2.5" NVMe*/SATA* drive bays Option A: Total 24 bays 24 front hot-swap 2.5" NVMe*/SATA* drive bays (*NVMe/SATA support may require additional storage controller and/or cabling. Please see the optional parts list for details.) |
| M.2 | 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110) |
| System Cooling |
|---|
| Fans | Up to 6 counter-rotating 60x60x56mm fans |
| Air Shroud | 2 Air Shrouds |
| Power Supply |
|---|
| 2x 1200W / 1300W / 1600W / 2000W / 2600W Redundant Titanium Level (96%) power supplies | |
| Dimension (W x H x L) | 73.5 x 40 x 265 mm |
| Input | 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only) 2000W: 230-240Vdc / 50-60Hz (for CQC only) 2700W: 200-240Vac |
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166A / Min: 0A (230Vac-240Vac) Max: 225A / Min: 0A (200Vac-240Vac) |
| 12V SB | Max: 3.5A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Operating Environment |
|---|
| Environmental Specification | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Environmental / Recycling |
|---|
| Recycle | Return Server-End of Life Product |
