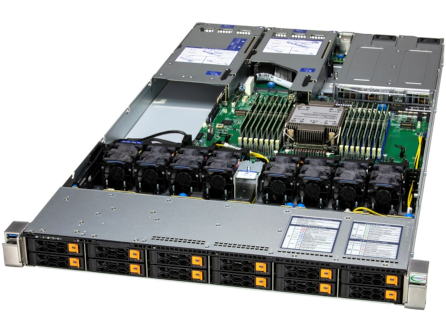

Supermicro SYS-112H-TN Compact Rackmount Server

Compact Hyper Rackmount Performance

The Supermicro SYS-112H-TN is a compact 1U Hyper rackmount server engineered for scale-out cloud workloads, AI inference, virtualisation and high-performance enterprise infrastructure. Powered by a single Intel® Xeon® 6 processor platform, the SYS-112H-TN delivers exceptional compute density, PCIe 5.0 expansion and ultra-fast NVMe storage support within a space-efficient rackmount design optimised for modern data centres.

Hyper Performance Platform

The Hyper architecture is optimised for scalable cloud infrastructure, enterprise applications and high-throughput workloads.

Intel® Xeon® 6 Processing

Supports Intel® Xeon® 6 processors with high core counts, advanced DDR5 memory and PCIe 5.0 connectivity.

PCIe 5.0 NVMe Storage

Supports ultra-fast NVMe storage and flexible PCIe expansion for demanding virtualisation and storage-intensive applications.

Tool-less Serviceability

Modular and tool-less chassis design simplifies deployment, maintenance and infrastructure scalability.

Ideal Applications

  • Virtualisation
  • Financial Computing
  • Scale-Out All-Flash NVMe Storage
  • Data Centre Enterprise Applications
  • Cloud Computing
  • AI Inference
  • CDN / vCDN / Cloud CDN
  • High-Performance Enterprise Infrastructure
  • Cloud-Native Deployments
  • Scalable Compute Environments

Platform Highlights

Architecture 1U Hyper Rackmount Server
Processor Support Single Intel® Xeon® 6 Processor
Memory DDR5 RDIMM / MRDIMM Support
Storage PCIe 5.0 NVMe Storage Support
Expansion PCIe 5.0 & AIOM Expansion Slots
Form Factor 1U Rackmount

Built for Scalable Enterprise Infrastructure

The SYS-112H-TN combines compute performance, PCIe 5.0 scalability and high-density storage flexibility within a compact 1U platform designed for modern enterprise, cloud and AI infrastructure deployments.

Price available upon request.

Product Specifications

Product SKUs
SYS-112H-TN Compact Rackmount Server
SYS-112H-TN-02-G2 Gold Series version with pre-configured components
Motherboard
Super X14SBH
Processor
CPU Single Socket E2 (LGA-4710)
Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Core Count P-cores: Up to 86C/172T; Up to 336MB Cache
E-cores: Up to 144C/144T; Up to 108MB Cache
Note Supports up to 350W TDP CPUs (Air Cooled)
GPU
Maximum GPU Count Up to 1 double-width or 3 single-width GPUs
Supported GPU NVIDIA PCIe: L4, L40S
Intel PCIe: Intel Data Center GPU Flex 170
CPU-GPU Interconnect PCIe 5.0 x16 CPU-to-GPU Interconnect
System Memory
Memory Slot Count: 16 DIMM slots
Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM
Max Memory (2DPC): Up to 4TB 5200MT/s ECC DDR5 RDIMM
Memory Voltage 1.1V
On-Board Devices
NVMe NVMe; RAID 0/1/5/10 support (Intel® VROC RAID key required)
Network Connectivity Via AIOM
Input / Output
LAN 1 RJ45 1GbE Dedicated BMC LAN port
USB 2 USB 3.2 Gen1 ports (rear)
1 USB 3.2 Gen1 port (front)
Video 1 VGA port
System BIOS
BIOS Type AMI 64MB SPI Flash
Management
Software SuperCloud Composer®
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power Configurations Power-on mode for AC power recovery
ACPI Power Management
Security
Hardware Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
PC Health Monitoring
CPU Monitors for CPU Cores, Chipset Voltages and Memory
Fan Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Chassis
Form Factor 1U Rackmount
Model CSE-HS101-R000NFP
Dimensions and Weight
Height 1.7" (43 mm)
Width 17.2" (437 mm)
Depth 30.66" (778.7 mm)
Package 8.82" (H) x 26.46" (W) x 43.31" (D)
Weight Gross Weight: 41.4 lbs (18.8 kg)
Net Weight: 19.2 lbs (8.7 kg)
Available Colour Silver
Front Panel
Buttons Power On/Off
UID button
LED HDD activity
LAN1 activity
Power status
System information
Expansion Slots
PCI-Express (PCIe) Configuration Default
1 PCIe 5.0 x16 (in x16) FHHL slot
1 PCIe 5.0 x16 (in x16) FHFL double-width slot
1 PCIe 5.0 x16 (in x16) AIOM slot (OCP 3.0 compatible)

Option A*
1 PCIe 5.0 x16 (in x16) FHHL slot
2 PCIe 5.0 x16 (in x16) FHFL slots
1 PCIe 5.0 x16 (in x16) AIOM slot (OCP 3.0 compatible)

*Requires additional parts. Please refer to Supermicro optional parts list for details.
Drive Bays / Storage
Drive Bays Configuration Default: Total 8 bays
8 front hot-swap 2.5" NVMe/SAS/SATA drive bays

Option A: Total 12 bays
8 front hot-swap 2.5" NVMe/SAS/SATA drive bays
4 front hot-swap 2.5" SAS/SATA drive bays

Option B: Total 12 bays
12 front hot-swap 2.5" NVMe/SAS/SATA drive bays
M.2 2 M.2 NVMe slots (M-key 2280/22110/25110; VROC required for RAID)
System Cooling
Fans Up to 8 counter-rotating 40x40x56mm fans
Air Shroud 1 CPU Air Shroud
Power Supply
2x 1200W / 1300W / 1600W / 2000W Redundant Titanium Level (96%) power supplies
Dimension (W x H x L) 73.5 x 40 x 265 mm
Input 800W: 100-127Vac
1200W: 200-240Vac
1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V Max: 66.7A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB Max: 2.1A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
Environmental Specification Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Environmental / Recycling
Recycle Return Server-End of Life Product
