| Product SKUs |
|---|

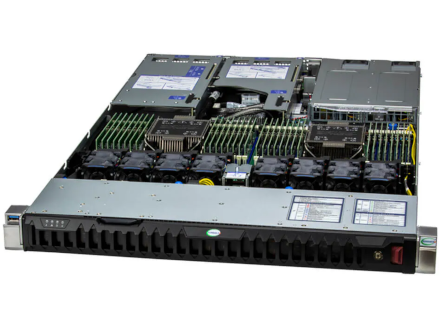

| SYS-121H-TNR | TwinPro NVMe Server |
| Motherboard |
|---|
| Super X13DEM |
| Processor |
|---|
| CPU | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM) |
| Core Count | Up to 64C/128T; Up to 320MB Cache per CPU |
| Note | Supports up to 350W TDP CPUs (Air Cooled)* Supports up to 350W TDP CPUs (Liquid Cooled) *Air Cooled CPUs with TDP over 250W only supported under specific conditions. Contact a Supermicro representative for details. |
| GPU |
|---|
| Maximum GPU Count | Up to 1 double-width or 3 single-width GPUs |
| Supported GPU | NVIDIA PCIe: H100, L4, L40S, RTX A4000, RTX A5000 |
| Certification | NVIDIA Certified |
| System Memory |
|---|
| Memory | Slot Count: 32 DIMM slots Maximum Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Maximum Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices |
|---|
| SATA | SATA (6Gbps); RAID 0/1/5/10 support |
| NVMe | NVMe; RAID 0/1/5/10 support (Intel® VROC RAID key required) |
| Network Connectivity | Via AIOM |
| Input / Output |
|---|
| LAN | 1 RJ45 1GbE Dedicated BMC LAN port |
| USB | 2 USB 2.0 ports (rear) 1 USB 3.0 port (front) |
| Video | 1 VGA port |
| System BIOS |
|---|
| BIOS Type | AMI 64MB SPI Flash |
| Management |
|---|
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power Configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security |
|---|
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring |
|---|
| CPU | Monitors for CPU Cores, Chipset Voltages and Memory |
| Fan | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis |
|---|
| Form Factor | 1U Rackmount |
| Model | CSE-HS119-R1K24P2 |
| Dimensions and Weight |
|---|
| Height | 1.7" (43 mm) |
| Width | 17.2" (437 mm) |
| Depth | 29.4" (747 mm) |
| Package | 8.1" (H) x 23.8" (W) x 40.6" (D) |
| Weight | Gross Weight: 49 lbs (22.2 kg) Net Weight: 34 lbs (15.4 kg) |
| Available Colour | N/A |
| Front Panel |
|---|
| Buttons | Power On/Off UID button |
| LED | HDD activity LAN1 activity Power System information |
| Expansion Slots |
|---|
| PCI-Express (PCIe) Configuration | Default 1 PCIe 5.0 x16 FHHL slot 2 PCIe 5.0 x16 FH/10.5"L slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| M.2 | 2 M.2 NVMe/SATA slots (B+M-key 2280/22110) |
| Drive Bays / Storage |
|---|
| Drive Bays Configuration | Default: Total 8 bays 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays Option A: Total 12 bays 12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cabling. Please see the optional parts list for details.) |
| M.2 | 2 M.2 NVMe/SATA slots (M-key 2280/22110) |
| System Cooling |
|---|
| Fans | Up to 8 counter-rotating 40x40x56mm fans |
| Air Shroud | 2 Air Shrouds |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate (optional) |
| Power Supply |
|---|
| 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies | |
| Dimension (W x H x L) | 73.5 x 40 x 265 mm |
| Input | 800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only) |
| +12V | Max: 66.7A / Min: 0A (100Vac-127Vac) Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vac-240Vac) Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only) |
| 12V SB | Max: 2.1A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Operating Environment |
|---|
| Environmental Specification | Name: A2 Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing) Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing) |
| Environmental / Recycling |
|---|
| Recycle | Return Server-End of Life Product |
