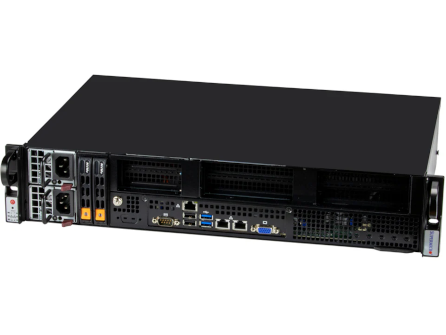

Supermicro SYS-211E-FRN2T Edge NVMe Server

Compact Edge NVMe Infrastructure for AI & 5G Deployments

The Supermicro SYS-211E-FRN2T is a compact 2U edge-optimised NVMe server engineered for AI inference, 5G infrastructure, NFV and space-constrained enterprise deployments. Featuring PCIe 5.0 expansion, high-speed NVMe storage and support for 5th and 4th Gen Intel® Xeon® Scalable processors, the platform delivers enterprise-grade compute performance in an ultra short-depth chassis.

Ultra Short-Depth Design

Optimised for edge infrastructure, telecom racks and deployments where space efficiency and front I/O accessibility are critical.

PCIe Gen5 Expansion

Supports PCIe 5.0 accelerator cards and GPU expansion for AI inference, analytics and network acceleration workloads.

Edge NVMe Performance

Integrated NVMe architecture provides low-latency storage performance for modern edge and virtualised applications.

Enterprise Edge Reliability

Built with redundant power supplies, advanced remote management and enterprise-grade thermal efficiency for 24/7 operation.

Ideal Applications

  • 5G Core & Edge Infrastructure
  • AI Inference & Machine Learning
  • Network Function Virtualisation (NFV)
  • Edge Cloud Computing
  • Cybersecurity & Network Appliances
  • Industrial Edge Deployments
  • Real-Time Analytics
  • Compact Enterprise Infrastructure

Platform Highlights

Processors Intel® Xeon® Scalable Processors
Architecture 2U Ultra Short-Depth Edge Platform
Expansion PCIe 5.0 Accelerator Support
Networking Dual 10GbE Connectivity
Storage NVMe Storage Support
Deployment Edge & Space-Constrained Infrastructure

Built for Intelligent Edge Infrastructure

The SYS-211E-FRN2T is engineered for organisations deploying compact high-performance infrastructure where PCIe Gen5 expansion, NVMe performance and enterprise-grade edge reliability are essential for modern distributed computing environments.

Price available upon request.

Product Specifications

Product SKUs
SYS-211E-FRN2T Edge NVMe Server
Motherboard
Super X13SEM-TF
Processor
CPU Single Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count Up to 60C/120T; Up to 112.5MB Cache
Note Supports up to 350W TDP CPUs (Air Cooled)*

*Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count Up to 3 single-width GPUs
Supported GPU NVIDIA PCIe: A2
Intel PCIe: Intel Data Center GPU Flex 140
CPU-GPU Interconnect PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect PCIe
System Memory
Memory Slot Count: 8 DIMM slots
Max Memory (2DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
Memory Voltage 1.1V
On-Board Devices
NVMe NVMe; RAID 0/1 support (Intel® VROC RAID key required)
Network Connectivity 2 QSFP28 25GbE with Intel® XXV710 (optional)
2 QSFP+ 40GbE with Intel® X710-BM2 (optional)
4 RJ45 1GbE with Intel® I350 (optional)
2 QSFP28 100GbE with Intel® E810-CAM2 (optional)
2 RJ45 10GBASE-T with Intel® X550
2 SFP+ 10GbE with Intel® X710-BM2 (optional)
2 QSFP56 100GbE (optional)
4 QSFP28 25GbE with Intel® E810-CAM1 (optional)
2 QSFP56 200GbE (optional)
Input / Output
LAN 1 RJ45 1 GbE Dedicated BMC LAN port
2 RJ45 10 GbE LAN ports (Intel® X550-AT2)
USB 2 USB 2.0 ports (front)
2 USB 3.2 Gen1 ports (front)
Video 1 VGA port
Serial 1 port
System BIOS
BIOS Type AMI 256MB SPI Flash
Management
Software SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power Configurations ACPI Power Management
Power-on mode for DC power recovery
Security
Hardware Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
PC Health Monitoring
CPU Monitors for CPU Cores, Chipset Voltages, Memory
FAN Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature CPU thermal trip support, PEPI
Monitoring for CPU and chassis environment
Chassis
Form Factor 2U Rackmount
Model CSE-211M
Dimensions and Weight
Height 3.5" (88.9 mm)
Width 17.2" (436.88 mm)
Depth 11.8" (298.8 mm)
Package 7.4" (H) x 19.3" (W) x 23.3" (D)
Weight Gross Weight: 22 lbs (10 kg)
Net Weight: 17 lbs (7.7 kg)
Available Colour Silver/Black
Front Panel
Buttons Power On/Off
UID button
LED HDD activity
LAN1 activity
LAN2 activity
Power status
System information
Expansion Slots
PCI-Express (PCIe) Configuration Default
2 PCIe 5.0 x16 FHHL slots
1 PCIe 5.0 x16 HHHL slot
1 PCIe 5.0 x8 HHHL slot

Option A*
3 PCIe 5.0 x16 FHHL slots
1 PCIe 5.0 x16 HHHL slot
1 PCIe 5.0 x8 FHHL slot

Option B*
3 PCIe 5.0 x16 FHHL slots
2 PCIe 5.0 x8 HHHL slots
1 PCIe 5.0 x8 HHHL slot
...
Drive Bays / Storage
Drive Bays Configuration Default: Total 2 bays
2 front hot-swap 2.5" NVMe drive bays
M.2 2 M.2 NVMe slots (M-key 2280/22110)
System Cooling
Fans Up to 4x 4-PIN PWM 8cm Fan(s)
Air Shroud 1 Air Shroud
Power Supply
2x 800W Redundant Platinum Level (94%) power supplies
Dimension (WxHxL) 54.5 x 40.25 x 220 mm
Input 750W: 100-127Vac / 50-60Hz
800W: 200-240Vac / 50-60Hz
800W: 230-240Vdc / 50-60Hz
+12V Max: 62.5A / Min: 0.5A (100Vac-127Vac)
Max: 66.6A / Min: 0.5A (200Vac-240Vac)
Max: 66.6A / Min: 0.5A (230Vdc-240Vdc)
5V SB Max: 4A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
Environmental Spec. Operating Temperature: 0°C to 45°C (32°F to 113°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Environmental / Recycling
Recycle Return Server-End of Life Product
