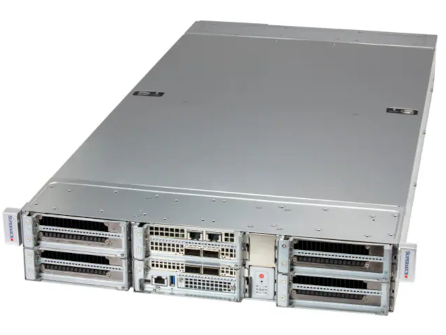

Supermicro SYS-212GB-FNR RTX PRO GPU Platform

Compact AI & GPU Compute Platform

Designed for AI inference, scientific research and accelerated enterprise computing, this 2U GPU platform combines Intel® Xeon® 6700/6500 Series processors with support for up to four NVIDIA RTX PRO™ 6000 Blackwell Server Edition GPUs.

4x GPU Acceleration

Supports up to 4 double-width PCIe GPUs for AI inference, model analysis and high-performance compute workloads.

RTX PRO Blackwell Ready

Optimised for NVIDIA RTX PRO™ 6000 Blackwell Server Edition and NVIDIA H200 GPU deployments.

PCIe 5.0 Architecture

Enterprise PCIe Gen5 connectivity delivering high-bandwidth GPU, storage and networking performance.

High-Speed E1.S NVMe

Supports rear hot-swap E1.S PCIe 5.0 NVMe storage for high-speed AI datasets and low-latency workloads.

Ideal Applications

AI Inference & Edge AI
Scientific Research
High Performance Computing (HPC)
Financial Services
Research Laboratories
Model Analysis
Accelerated Enterprise Applications
GPU Compute Infrastructure

Platform Highlights

Processor	Single Intel® Xeon® 6700/6500 Series
GPU Support	Up to 4 Double-Width GPUs
Memory	Up to 2TB DDR5 ECC Memory
Expansion	PCIe 5.0 x16 Expansion
Storage	4x Rear E1.S NVMe Bays
Form Factor	2U Rackmount GPU Platform

Built for AI Inference

Combining compact deployment, PCIe Gen5 bandwidth and enterprise GPU acceleration, this 2U platform is designed for modern AI inference, edge AI and accelerated compute infrastructure.

Price available upon request.

Product Specifications

Product SKUs

SYS-212GB-FNR	GPU SuperServer SYS-212GB-FNR
SYS-212GB-FNR-01-G2	Gold Series version with pre-configured components

Motherboard

Super X14SBGM

Processor

CPU	Single Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores
Core Count	Up to 80C/160T
Note	Supports up to 350W TDP CPUs (Air Cooled)

GPU

Max GPU Count	Up to 4 double-width GPUs
Supported GPU	NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Server Edition
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink™ Bridge (optional)

System Memory

Memory	Slot Count: 16 DIMM slots/8 Channels Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM
Memory Voltage	1.1V

On-Board Devices

Network Connectivity

View AOC Options

Input / Output

LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	1 USB 3.0 Type-A port (Rear)
Video	1 mini-DP port

System BIOS

BIOS Type

AMI 64MB SPI Flash EEPROM

Management

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! Plug-ins for 3rd Party Software
Power Configurations	Power-on mode for AC power recovery ACPI Power Management

Security

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring

CPU	8+4 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis

Form Factor	2U Rackmount
Model	CSE-MG204-R000NDFP

Dimensions and Weight

Height	3.43" (87 mm)
Width	17.3" (438.4 mm)
Depth	35.43" (900 mm)
Package	11.02" (H) x 27.56" (W) x 47.24" (D)
Weight	Gross Weight: 84 lbs (38 kg) Net Weight: 66 lbs (30 kg)
Available Colour	Silver

Front Panel

Buttons	Power On/Off
LED	HDD activity

Expansion Slots

PCI-Express (PCIe) Configuration	Default 4 PCIe 5.0 x16 FHFL double-width slots 3 PCIe 5.0 x16 FHFL slots
M.2	2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)

Drive Bays / Storage

Drive Bays Configuration	Default: Total 4 bays 4 rear hot-swap E1.S PCIe 5.0 x4 NVMe drive bays
M.2	2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)

System Cooling

Fans

5x 8cm heavy duty fans with optimal fan speed control

Power Supply

2x 2700W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)	73.5 x 40 x 185 mm
Input	2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only)
+12V	Max: 225A / Min: 0A (200Vac-240Vac) Max: 225A / Min: 0A (240Vdc-240Vdc)
12V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)

Operating Environment

Environmental Spec.

Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing)
Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)

Environmental / Recycling

Recycle

Return Server-End of Life Product
