| Product SKUs |
|---|

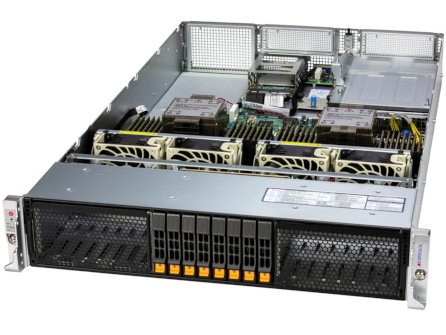

| SYS-222H-TN | Hyper NVMe Server |
| SYS-222H-TN-01-G2 | Gold Series version with pre-configured components |
| Motherboard |
|---|
| Super X14DBM-SP |
| Processor |
|---|
| CPU |
Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| Core Count |
P-cores: Up to 86C/172T; Up to 336MB Cache per CPU E-cores: Up to 144C/144T; Up to 108MB Cache per CPU |
| Note |
Supports up to 350W TDP CPUs (Air Cooled) Supports up to 350W TDP CPUs (Liquid Cooled) |
| GPU |
|---|
| Maximum GPU Count | Up to 4 double-width or 8 single-width GPUs |
| Supported GPU | NVIDIA PCIe: H100 NVL, L40S |
| System Memory |
|---|
| Memory |
Slot Count: 32 DIMM slots Maximum Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM Maximum Memory (1DPC): Up to 1TB 8000MT/s ECC DDR5 MRDIMM (P-core only) Maximum Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices |
|---|
| NVMe | NVMe; RAID 0/1/5/10 support (Intel® VROC RAID key required) |
| Network Connectivity | Via AIOM |
| Input / Output |
|---|
| LAN | 1 RJ45 1GbE Dedicated BMC LAN port |
| USB |
2 USB 3.0 ports (rear) 2 USB 3.0 ports (header) |
| Video | 1 VGA port |
| System BIOS |
|---|
| BIOS Type | AMI 64MB SPI Flash |
| Management |
|---|
| Software |
SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power Configurations |
Power-on mode for AC power recovery ACPI Power Management |
| Security |
|---|
| Hardware |
Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features |
Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring |
|---|
| CPU | Monitors for CPU Cores, Chipset Voltages and Memory |
| Fan |
Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature |
Monitoring for CPU and chassis environment Thermal control for fan connectors |
| Chassis |
|---|
| Form Factor | 2U Rackmount |
| Model | CSE-HS219-R000NP |
| Dimensions and Weight |
|---|
| Height | 3.5" (88 mm) |
| Width | 17.3" (438.4 mm) |
| Depth | 29.73" (755.2 mm) |
| Package | 10.12" (H) x 23.82" (W) x 37.28" (D) |
| Weight |
Gross Weight: 66 lbs (30 kg) Net Weight: 40 lbs (18.2 kg) |
| Available Colour | Silver |
| Front Panel |
|---|
| Buttons |
Power On/Off UID button |
| LED |
HDD activity LAN1 activity LAN2 activity Power Fail Power status System information (overheat/UID) |
| Expansion Slots |
|---|
| PCI-Express (PCIe) Configuration |
Option A* 4 PCIe 5.0 x16 FH/10.5"L double-width slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible) Option B* 8 PCIe 5.0 x8 (in x16) FH/10.5"L slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible) (*Requires additional parts. Please see the optional parts list for details. For further information on PCIe slot configuration options, please refer to the system callout images above.) |
| CXL Support | Up to 4 CXL 2.0 x16/x8 devices |
| Drive Bays / Storage |
|---|
| Drive Bays Configuration |
Default: Total 8 bays 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays Option A: Total 16 bays 16 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays Option B: Total 24 bays 24 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cabling. Please see the optional parts list for details.) |
| M.2 | 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110) |
| System Cooling |
|---|
| Fans | Up to 4x 8cm heavy duty fans with optimal fan speed control |
| Air Shroud | 2 Air Shrouds |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate (optional) |
| Power Supply |
|---|
| 2x 1200W / 1600W / 2000W / 2600W Redundant Titanium Level (96%) Hot-plug power supplies | |
| Dimension (W x H x L) | 73.5 x 40 x 265 mm |
| Input |
800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only) |
| +12V |
Max: 66.7A / Min: 0A (100Vac-127Vac) Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vac-240Vac) Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only) |
| 12V SB | Max: 2.1A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Operating Environment |
|---|
| Environmental Specification |
Name: A2 Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing) Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing) |
| Environmental / Recycling |
|---|
| Recycle | Return Server-End of Life Product |
