| Product SKUs |
|---|

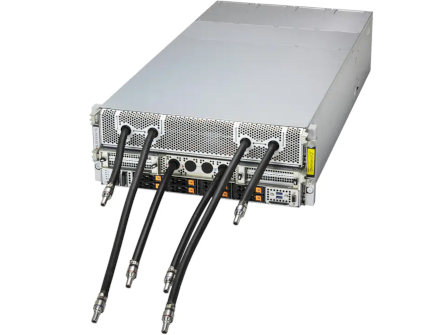

| SYS-422GA-NBRT-LCC | GPU SuperServer SYS-422GA-NBRT-LCC |
| Motherboard |
|---|
| Super X14DBG-DAP |
| Processor |
|---|
| CPU |
Dual Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores |
| Core Count | Up to 128C/256T; Up to 504MB Cache per CPU |
| Note | Supports up to 500W TDP CPUs (Liquid Cooled) |
| GPU |
|---|
| Max GPU Count | 8 onboard GPUs |
| Supported GPU | NVIDIA SXM: HGX B200 8-GPU (180GB) |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink™ with NVSwitch™ |
| System Memory |
|---|
| Memory |
Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices |
|---|
| Network Connectivity | 2 RJ45 10GbE with Intel® X710-AT2 |
| Input / Output |
|---|
| Video | 1 VGA port |
| System BIOS |
|---|
| BIOS Type | AMI 64MB UEFI |
| Management |
|---|
| Software |
SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power Configurations |
Power-on mode for AC power recovery ACPI Power Management |
| Security |
|---|
| Hardware |
Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features |
Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring |
|---|
| CPU |
8+4 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN |
Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature |
Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis |
|---|
| Form Factor | 4U Rackmount |
| Model | CSE-GP403TS-R000NP |
| Dimensions and Weight |
|---|
| Height | 6.85" (174 mm) |
| Width | 17.6" (449 mm) |
| Depth | 35.25" (895.35 mm) |
| Package | 16.14" (H) x 28.7" (W) x 50.39" (D) |
| Weight |
Gross Weight: 236 lbs (107 kg) Net Weight: 203 lbs (92 kg) |
| Available Colour | Silver |
| Front Panel |
|---|
| Buttons |
Power On/Off UID/ Reset button |
| LED |
Network activity LEDs System information (overheat/UID) UID |
| Expansion Slots |
|---|
| PCI-Express (PCIe) Configuration |
Default 10 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots |
| Drive Bays / Storage |
|---|
| Drive Bays Configuration |
Default: Total 8 bays 8 front hot-swap 2.5" NVMe drive bays |
| M.2 | 2 M.2 NVMe slots (M-key) |
| System Cooling |
|---|
| Fans | Up to 5 Fan 60mm Fan(s) |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate |
| Power Supply |
|---|
| 4x 6600W Redundant (2 + 2) Titanium Level (96%) power supplies | |
| Dimension (WxHxL) | 106.5 x 82.1 x 245.3 mm |
| Input |
5900W: 200-207.9Vac / 50-60Hz 6000W: 208-219.9Vac / 50-60Hz 6300W: 220-229.9Vac / 50-60Hz 6500W: 230-238.9Vac / 50-60Hz 6600W: 239-240Vac / 50-60Hz |
| +12V |
Max: 130A / Min: 0A (200Vac-207.9Vac) Max: 130A / Min: 0A (208Vac-219.9Vac) Max: 130A / Min: 0A (220Vac-229.9Vac) Max: 130A / Min: 0A (230Vac-238.9Vac) Max: 130A / Min: 0A (239Vac-240Vac) |
| 12V SB | Max: 4A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Certification | Titanium Level94%+ Titanium Level |
| Operating Environment |
|---|
| Environmental Spec. |
Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
