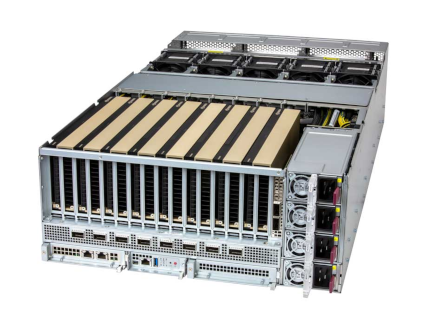

Supermicro SYS-422GL-FNR2 PCIe GPU Platform

Next-Generation AI & GPU Infrastructure

Designed for enterprise AI training, large-scale inference and accelerated HPC environments, this 4U GPU platform combines dual Intel® Xeon® 6900 Series processors with support for up to eight NVIDIA Blackwell or H200 NVL accelerator GPUs.

8x GPU Acceleration

Supports up to 8 double-width PCIe GPU accelerator cards including NVIDIA RTX PRO™ 6000 Blackwell Server Edition and H200 NVL GPUs.

PCIe 6.0 Architecture

Enterprise PCIe Gen6 infrastructure delivering exceptional bandwidth for GPU acceleration, AI networking and NVMe storage.

Intel Xeon 6 Platform

Dual Intel® Xeon® 6900 Series processors with P-cores supporting up to 500W TDP and up to 128 cores per system.

High-Speed E1.S NVMe

Supports up to 8 hot-swap E1.S NVMe drive bays for AI datasets, high-performance storage and data-intensive workflows.

Ideal Applications

  • AI & Deep Learning Training
  • Large Language Model (LLM) Infrastructure
  • High Performance Computing (HPC)
  • Business Intelligence & Analytics
  • Drug Discovery & Healthcare
  • Climate & Weather Modelling
  • Conversational AI
  • Industrial Automation

Platform Highlights

Processors Dual Intel® Xeon® 6900 Series
GPU Support Up to 8 Double-Width GPUs
Memory Up to 6TB DDR5 ECC Memory
Expansion PCIe 6.0 x16 GPU Slots
Storage 8x E1.S NVMe Hot-Swap Bays
Form Factor 4U Rackmount GPU Platform

Enterprise AI Compute at Scale

Built for modern AI datacentres and accelerated enterprise computing, this GPU platform delivers exceptional compute density, PCIe bandwidth and GPU scalability for advanced AI and HPC deployments.

Price available upon request.

Product Specifications

Product SKUs
SYS-422GL-FNR2 GPU SuperServer SYS-422GL-FNR2
Motherboard
Super X14DBG-MAP
Processor
CPU Dual Socket BR (LGA-7529)
Intel® Xeon® 6900 series processors with P-cores
Core Count 128C/144T
Note Supports up to 500W TDP CPUs (Air Cooled)
GPU
Max GPU Count Up to 8 double-width GPUs
Supported GPU NVIDIA PCIe: H200 NVL (141GB), NVIDIA RTX PRO™ 6000 Blackwell Server Edition
CPU-GPU Interconnect PCIe 5.0 x16 Switch Dual-Root
GPU-GPU Interconnect NVIDIA® NVLink™ Bridge (optional)
System Memory
Memory Slot Count: 24 DIMM slots
Max Memory (1DPC): 6.0TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): 6.0TB 8800MT/s ECC DDR5 MRDIMM
Memory Voltage 1.1V
On-Board Devices
Network Connectivity 1 RJ45 1GBASE-T with ASPEED AST2600
Input / Output
USB 1 USB 3.0 Type-A port (Rear)
Video 1 mini-DP port
TPM 1 TPM header
System BIOS
BIOS Type AMI 32MB UEFI
Management
Software SuperCloud Composer®
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power Configurations Power-on mode for AC power recovery
ACPI Power Management
Security
Hardware Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Chassis
Form Factor 4U Rackmount
Model CSE-MG401TS-R0BNDFP
Dimensions and Weight
Height 6.93" (176 mm)
Width 17.26" (438.4 mm)
Depth 31.5" (800 mm)
Package 27.32" (H) x 49.41" (W) x 19.49" (D)
Weight Gross Weight: 96.45 lbs (43.75 kg)
Net Weight: 49.5 lbs (22.45 kg)
Available Colour Silver
Front Panel
Buttons Power On/Off button
Expansion Slots
PCI-Express (PCIe) Configuration Default
8 PCIe 6.0 x16 FH double-width slots
2 PCIe 5.0 x16 FHHL slots
M.2 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280(default))
Drive Bays / Storage
Drive Bays Configuration Default: Total 8 bays
8 front hot-swap E1.S NVMe drive bays
M.2 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280(default))
System Cooling
Fans 10 Fan 80mm Fan(s)
Power Supply
4x 3200W Redundant (3 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 185 mm
Input 1000W: 100-127Vac / 50-60Hz
2900W: 200-207Vac / 50-60Hz
3000W: 207-220Vac / 50-60Hz
3200W: 220-240Vac / 50-60Hz
3200W: 0240Vdc / 50-60Hz (for CQC only)
+12V Max: 82A / Min: 0A (100Vac-127Vac)
Max: 237.7A / Min: 0A (200Vac-207Vac)
Max: 245.9A / Min: 0A (207Vac-220Vac)
Max: 262.3A / Min: 0A (220Vac-240Vac)
12V SB Max: 3A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
Environmental Spec. Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)

How to Order

To place an order, please make an enquiry using the 'Request More Information' form at the bottom of the page and one of our experienced sales team will contact you shortly.

Alternatively, you can call or email us and speak to one of our experienced technical sales team.

Tel: 01438 842 300
Email: sales@tmc-uk.com
