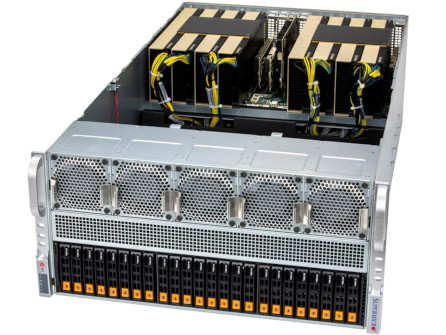

Supermicro SYS-522GA-NRT RTX PRO GPU Platform

High-Density AI & RTX PRO Infrastructure

Engineered for enterprise AI, large-scale inference and GPU-accelerated compute environments, this 5U GPU platform combines dual Intel® Xeon® 6900 Series processors with support for up to ten NVIDIA RTX PRO™ 6000 Blackwell Server Edition or H200 NVL GPUs.

Up to 10 GPUs

Supports up to 10 PCIe GPU accelerator cards for AI training, inference, rendering and large-scale visual computing.

RTX PRO Blackwell Ready

Optimised for NVIDIA RTX PRO™ 6000 Blackwell Server Edition and NVIDIA H200 NVL GPU deployments.

PCIe 5.0 Architecture

Dual-root PCIe Gen5 infrastructure delivering exceptional bandwidth for GPUs, NVMe storage and AI networking.

Enterprise NVMe Storage

Supports up to 24 front hot-swap NVMe bays alongside dual M.2 NVMe slots for high-speed AI datasets and storage workloads.

Ideal Applications

AI & Deep Learning Training
Large Language Model (LLM) Infrastructure
High Performance Computing (HPC)
Visualisation & Rendering
Media & Video Streaming
Cloud Gaming Infrastructure
VDI & Virtual Workstations
Scientific Simulation & Analytics

Platform Highlights

Processors	Dual Intel® Xeon® 6900 Series
GPU Support	Up to 10 PCIe GPUs
Memory	Up to 6TB DDR5 ECC Memory
Expansion	13x PCIe 5.0 x16 FHFL Slots
Storage	24x Hot-Swap NVMe Bays
Form Factor	5U Rackmount GPU Platform

Built for Modern AI Infrastructure

Delivering exceptional GPU density, enterprise scalability and PCIe bandwidth, this GPU platform is designed for organisations deploying advanced AI infrastructure, accelerated enterprise workloads and high-performance GPU compute environments.

Price available upon request.

Product Specifications

Product SKUs

SYS-522GA-NRT

GPU SuperServer SYS-522GA-NRT

Motherboard

Super X14DBG-AP

Processor

CPU	Dual Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores
Core Count	Up to 128C/256T; Up to 504MB Cache per CPU
Note	Supports up to 500W TDP CPUs (Air Cooled)

GPU

Max GPU Count	Up to 8 double-width or 10 single-width GPUs
Supported GPU	NVIDIA PCIe: NVIDIA RTX PRO™ 4500 Blackwell Server Edition, NVIDIA RTX PRO™ 6000 Blackwell Server Edition
CPU-GPU Interconnect	PCIe 5.0 x16 Switch Dual-Root
GPU-GPU Interconnect	NVIDIA® NVLink™ Bridge (optional)
Certification	NVIDIA Certified

System Memory

Memory	Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM
Memory Voltage	1.1V

On-Board Devices

Network Connectivity

2 RJ45 10GbE with Intel® X710-AT2

Input / Output

LAN	2 RJ45 10 GbE LAN ports (Intel® I350)
USB	2 USB 3.0 Type-A ports (Rear)
Video	1 VGA port

System BIOS

BIOS Type

AMI 32MB SPI Flash EEPROM

Management

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power Configurations	Power-on mode for AC power recovery ACPI Power Management

Security

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring

CPU	8+4 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis

Form Factor	5U Rackmount
Model	CSE-528G2TS-R9K60P

Dimensions and Weight

Height	8.75" (222.5 mm)
Width	17.2" (438 mm)
Depth	31" (786.1 mm)
Package	17.32" (H) x 28.34" (W) x 42.51" (D)
Weight	Gross Weight: 100 lbs (45.3 kg) Net Weight: 65.5 lbs (29.7 kg)
Available Colour	Black Front & Silver Body

Front Panel

Buttons	Power On/Off button System Reset button
LED	Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED

Expansion Slots

PCI-Express (PCIe) Configuration	Default 13 PCIe 5.0 x16 FHFL slots
M.2	2 M.2 PCIe 5.0 x4 NVMe slots (B+M-key)

Drive Bays / Storage

Drive Bays Configuration	Default: Total 24 bays 24 front hot-swap 2.5" PCIe 5.0 NVMe drive bays
M.2	2 M.2 NVMe slots (M-key)

System Cooling

Fans	Up to 10 heavy duty fans with optimal fan speed control
Air Shroud	1 Air Shroud

Power Supply

6x 2700W Redundant (4 + 2) Titanium Level (96%) power supplies
Dimension (WxHxL)	73.5 x 40 x 203 mm
Input	2700W: 200-240Vac 2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only)
+12V	Max: 225A / Min: 0A (200Vac-240Vac) Max: 225A / Min: 0A (240Vdc-240Vdc)
12V SB	Max: 3.5A / Min: 0A Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)

Operating Environment

Environmental Spec.

Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
