| Product SKUs |
|---|

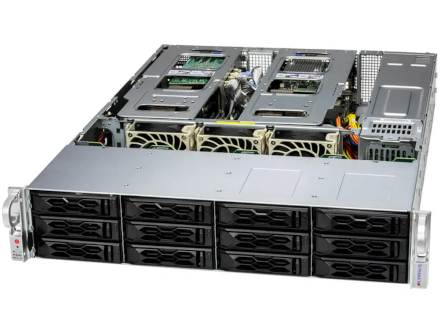

| SYS-621C-TN12R | CloudDC NVMe Server |
| Motherboard |
|---|
| Super X13DDW-A |
| Processor |
|---|
| CPU | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
| Core Count | Up to 64C/128T; Up to 112.5MB Cache per CPU |
| Note | Supports up to 350W TDP CPUs (Air Cooled)* *Air Cooled CPUs with TDP over 270W only supported under specific conditions. Contact a Supermicro representative for details. |
| GPU |
|---|
| Maximum GPU Count | Up to 2 double-width or 6 single-width GPUs |
| Supported GPU | NVIDIA PCIe: H100, H100 NVL, A2, L4, L40, L40S, RTX A4000, RTX A4500, RTX A5000, RTX A6000 Intel PCIe: Intel Data Centre GPU Flex 140, Intel Data Centre GPU Flex 170 |
| Certification | NVIDIA Certified |
| System Memory |
|---|
| Memory | Slot Count: 16 DIMM slots Maximum Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices |
|---|
| SATA | SATA (6Gbps); RAID 0/1/5/10 support |
| NVMe | NVMe; RAID 0/1/5/10 support (VROC HW key required) |
| Network Connectivity | Via AIOM |
| Input / Output |
|---|
| LAN | 1 RJ45 1GbE Dedicated BMC LAN port |
| USB | 2 USB 3.2 Gen1 Type-A ports (rear) |
| Video | 1 VGA port |
| Serial | 1 COM port (rear) |
| TPM | 1 TPM header |
| System BIOS |
|---|
| BIOS Type | AMI 32MB SPI FLASH ROM |
| Management |
|---|
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power Configurations | ACPI/APM Power Management |
| Security |
|---|
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring |
|---|
| CPU | 8 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages and Memory |
| Fan | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis |
|---|
| Form Factor | 2U Rackmount |
| Model | CSE-LA26TS-R1K23AWP1 |
| Dimensions and Weight |
|---|
| Height | 3.5" (89 mm) |
| Width | 17.2" (437 mm) |
| Depth | 25.5" (648 mm) |
| Package | 11.4" (H) x 26.7" (W) x 34.5" (D) |
| Weight | Gross Weight: 59 lbs (26.76 kg) Net Weight: 33 lbs (15 kg) |
| Available Colour | Black front & silver body |
| Front Panel |
|---|
| Buttons | Power On/Off Universal Information (UID) |
| LED | Drive activity Network activity Power status Universal Information (UID) |
| Expansion Slots |
|---|
| PCI-Express (PCIe) Configuration | Default 4 PCIe 5.0 x8 (in x16) FHFL slots 2 PCIe 5.0 x16 (in x16) FHHL slots 2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible) Option A 2 PCIe 5.0 x16 (in x16) FHFL slots 2 PCIe 5.0 x16 (in x16) FHHL slots 2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible) Option B 4 PCIe 5.0 x16 (in x16) FHFL slots 2 PCIe 5.0 x16 (in x16) FHHL slots 2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible) ... |
| CXL Support | Up to 2 CXL 1.1 x16/x8 Type 2/Type 3 devices |
| Drive Bays / Storage |
|---|
| Drive Bays Configuration | Default: Total 12 bays 12 front hot-swap 3.5" NVMe*/SAS*/SATA* drive bays Option A: Total 12 bays 12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cabling. Please see the optional parts list for details.) |
| M.2 | 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280 default; VROC required for RAID) |
| System Cooling |
|---|
| Fans | Up to 3x 8cm heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud |
| Power Supply |
|---|
| 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies | |
| Dimension (W x H x L) | 76 x 40 x 336 mm |
| Input | 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) |
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vac-240Vac) Max: 100A / Min: 0A (200Vdc-240Vdc) |
| 5V SB | Max: 4A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Operating Environment |
|---|
| ROHS | RoHS Compliant |
| Environmental Specification | Name: A2 Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing) Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing) |
