| Product SKUs |
|---|

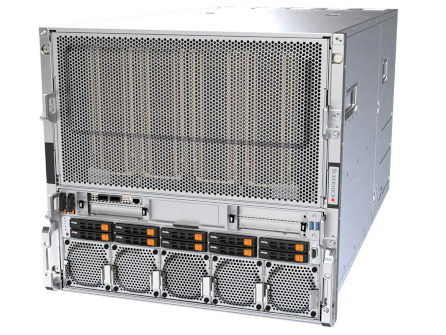

| SYS-A22GA-NBRT | GPU SuperServer SYS-A22GA-NBRT |
| Motherboard |
|---|
| Super X14DBG-DAP |
| Processor |
|---|
| CPU |
Dual Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores |
| Core Count | Up to 128C/256T; Up to 504MB Cache per CPU |
| Note | Supports up to 500W TDP CPUs (Air Cooled) |
| GPU |
|---|
| Max GPU Count | 8 onboard GPUs |
| Supported GPU | NVIDIA SXM: HGX B200 8-GPU (180GB) |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink™ with NVSwitch™ |
| Certification | NVIDIA Certified |
| System Memory |
|---|
| Memory |
Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices |
|---|
| Network Connectivity | 2 RJ45 10GbE with Intel® X710 |
| Input / Output |
|---|
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports (rear) |
| Video | 1 VGA port |
| TPM | 1 TPM header |
| System BIOS |
|---|
| BIOS Type | AMI 64MB UEFI |
| Management |
|---|
| Software |
SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power Configurations |
Power-on mode for AC power recovery ACPI Power Management |
| Security |
|---|
| Hardware |
Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features |
Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring |
|---|
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN |
Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature |
Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis |
|---|
| Form Factor | 10U Rackmount |
| Model | CSE-GP1001TS-R000NPF |
| Dimensions and Weight |
|---|
| Height | 17.2" (438.8 mm) |
| Width | 17.6" (449 mm) |
| Depth | 33.2" (843.28 mm) |
| Package | 27.95" (H) x 28.74" (W) x 50.39" (D) |
| Weight |
Gross Weight: 341 lbs (155 kg) Net Weight: 293 lbs (133 kg) |
| Available Colour | Silver |
| Front Panel |
|---|
| Buttons |
Power On/Off UID/ Reset button |
| LED |
HDD activity Network activity LEDs System information (overheat/UID) UID |
| Expansion Slots |
|---|
| PCI-Express (PCIe) Configuration |
Default 10 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots |
| Drive Bays / Storage |
|---|
| Drive Bays Configuration |
Default: Total 10 bays 10 front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays |
| M.2 | 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110; RAID support via S3808N controller) |
| System Cooling |
|---|
| Fans |
Up to 15 counter-rotating 80x80x80mm Fan(s) Up to 4 counter-rotating 60x60x56mm Fan(s) |
| Air Shroud | 1 Air Shroud |
| Power Supply |
|---|
| 6x 5250W Redundant (3 + 3) Titanium Level (96%) power supplies | |
| Dimension (WxHxL) | 106.5 x 82.1 x 245.3 mm |
| Input | 5250W: 200-240Vac / 50-60Hz |
| +12V | Max: 125A / Min: 0A (200Vac-240Vac) |
| 12V SB | Max: 4A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Certification | Titanium Level94%+ Titanium Level |
| Operating Environment |
|---|
| Environmental Spec. |
Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
