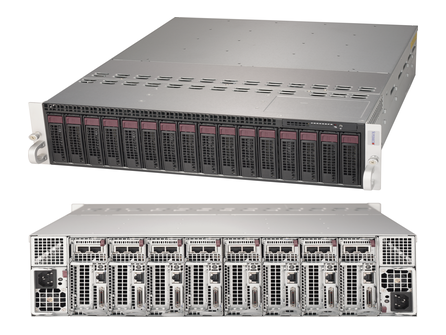

Supermicro 5038MD-H8TRF

Key Features (per Node):
- Cloud Computing
- Web Cache, CDN
- Web Hosting
- Social Networking

1. Single socket FCBGA 1667, 6-Core, 45W, 12 Threads; support Intel® Xeon® processor D-1531
2. 2x 3.5" SATA3 by default; 2x 2.5" SATA3 HDDs w/ Optional kits
3. Up to 128GB DDR4 ECC RDIMM/64GB DDR4 ECC UDIMM, 4 sockets
4. 2x GbE LAN ports via Intel i350, 1x dedicated LAN for IPMI Remote Management
5. 1x PCI-E 3.0 x8 LP, 1x Micro-LP, 4x M.2
6. 2x USB 2.0, 1x VGA, 1x COM port (with KVM dongle)
7. 4x 8cm heavy duty hot-swap fans with optimal cooling zone (per system)
8. 1600W Redundant power supplies Titanium Level Certified (per system)

Price available upon request.

Product Specifications

Product SKUs
SYS-5038MD-H8TRF
  • SuperServer 5038MD-H8TRF (Black)
Motherboard
MBD-X10SDD-F
Processor/Cache
CPU
  • Intel® Xeon® processor D-1541
  • Socket FCBGA 1667
  • CPU TDP support 45W, 12MB, 8 Cores, 16 Threads, 2.1-2.7GHz
System Memory (per Node)
Memory Capacity
  • 4x 288-pin DDR4 DIMM slots
  • Supports up to 128 GB DDR4 ECC RDIMM
  • Supports up to 64 GB DDR4 ECC UDIMM
Memory Type
  • 2133/1866/1600MHz ECC DDR4 RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
Network Devices (per Node)
Micro-LP NIC
  • Intel® i350 GbE controller
  • Dual RJ-45 connectors
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • Intel® I/O Acceleration Technology (I/O AT)
  • MicroLP Adapter Matrix (Networking options)
On-Board Devices (per Node)
Chipset
  • System on Chip (SoC)
SATA
  • SATA3 (6Gbps) via SoC
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM over LAN support
  • ASPEED AST2400 BMC
Headers
  • 1 Type A USB 3.0
Graphics
  • ASPEED AST2400 Graphics (BMC with Graphic controller)
Input / Output (per Node)
SATA
  • 2x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
KVM
  • 1x VGA, 1x COM and 2x USB 2.0 (with KVM dongle)
System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • DMI 2.3
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
Rear Window (each node)
Switch
  • Power / UID
Chassis
Form Factor
  • 3U
Model
  • CSE-938BH-R1K68B
Dimensions and Weight
Height
  • 5.21" (132.5 mm)
Width
  • 17.26" (438.4 mm)
Depth
  • 23.2" (589 mm)
Package
  • 11.65" (H) x 26.26" (W) x 34" (D)
Weight
  • Net Weight: 62.2 lbs (28.21 kg)
  • Gross Weight: 88 lbs (39.92 kg)
Available Colours
  • Black
Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED
  • Node status LED
Expansion Slots (per Node)
PCI-Express
  • 1x PCI-E 3.0 x8 Low-profile slot
  • 1x Micro-LP for Dual GbE (pre-installed); 10GbE or IB AOC optional
  • 4x M.2 (2x PCI-E 3.0 x4 + 1x PCI-E 2.0 x4 + 1x PCI-E 2.0 x2)
Drive Bays (per Node)
Internal
  • 2x 3.5" Hot-swap SATA3 (6Gbps) HDDs per node (or 2x 2.5" SATA3 with optional kits); up to 16 HDDs total
  • Enterprise SATA HDD only recommended
System Cooling (per Node)
Fans
  • 4x 8cm Heavy duty fans with optimal cooling zone
Power Supply

1600W 1U Redundant Power Supplies with PMBus

Total Output Power
  • 800W/1600W

Dimension
(W x H x L)
  • 76 x 40.4 x 336 mm
Input
  • 100-127Vac / 10-7A / 50-60Hz
  • 200-240Vac / 11-8A / 50-60Hz
+12V
  • Max: 66A / Min: 0A (100-127Vac)
  • Max: 133A / Min: 0A (200-240Vac)
+5Vsb
  • Max: 1A / Min: 0A
Output Type
  • 27 Pairs Gold Finger Connector
Certification
  • 80 Plus Platinum Level
    • UL/cUL/CB/BSMI/CE/CCC
    • Platinum Level
PC Health Monitoring
CPU
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
FAN
  • Cooling zone
 Temperature
  • Monitoring for CPU and chassis environment
Environment / Compliance
RoHs
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
