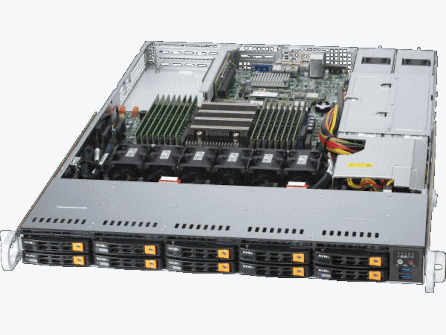

Supermicro 1114S-WN10RT (Complete System Only)

AMD EPYC
Virtualization

Cloud Computing
All Flash Storage
1.
Single AMD EPYC™ 7002 Series Processor
2. 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
3. 2 PCI-E 4.0 x16 (FHFL) slots, 1 PCI-E 4.0 x16 (LP) slot
4. Integrated IPMI 2.0 + KVM with  dedicated LAN
Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management
5. 10 Hot-swap U.2 NVMe4/NVMe3/SATA3 fully hybrid drive support
6. 2x 10GBase-T LAN ports via Broadcom BCM57416 Controller
7. 1 VGA, 7 USB 3.0 (4 rear, 2 front, 1 Type A)
8.
2 SuperDOM (Disk on Module) ports
9.
750W Redundant Power Supplies Platinum Level High-efficiency (Full redundancy based on configuration and application load)

Price available upon request.

Product Specifications

Product SKUs
AS -1114S-WN10RT
  • A+ Server 1114S-WN10RT (Black)
Motherboard
Super H12SSW-NTR
Processor/Cache
CPU
  • Single AMD EPYC™ 7002 Series Processor
  • Socket SP3
  • Support CPU TDP up to 280W
Cores
  • Up to 64 Cores
System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
On-Board Devices
Chipset
  • System on Chip
SATA
  • SATA3 (6Gbps)
Network Controllers
  • Dual 10GBase-T LAN with via Broadcom BCM57416
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC
Input / Output
SATA
  • 2 SATA3 (6 Gbps) ports
LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 7 USB 3.0 ports (4 rear, 1 Type A)
Video
  • 1 VGA port

DOM

  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • AMI 256Mb SPI Flash ROM
Management
Software
  • Super Doctor 5
  • Watch Dog
  • NMI
  • SUM
  • IPMI 2.0, KVM with dedicated LAN
Power Configurations
  • ACPI / APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-116TS-R706WBP5-N10
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 23.5" (597mm)
Weight
  • Net Weight: 25 lbs (11.34 kg)
  • Gross Weight: 39 lbs (17.69 kg)
Available Colours
  • Black
Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED
Expansion Slots
PCI-Express
  • 2 PCI-E 4.0 x16 (FHHL) slots
  • 1 PCI-E 4.0 x16 (LP) slot
  • 2 PCI-E / SATA 3.0 x2 NVMe M.2 slots
Drive Bays / Storage
Hot-swap
  • 10 Hot-swap 2.5" SATA3 drive bays
Backplane
Supports 10 NVMe or 10 SATA3
System Cooling
Fans
  • 6 heavy duty fans with Optimal Fan Speed Control
Power Supply

700W/750W Redundant Power Supplies with PMBus

Total Power Output
  • 700W: 100 - 140Vac
  • 750W: 200 - 240Vac
  • 750W: 200 - 240Vdc (for CCC only)
Dimension
(W x H x L)
  • 54.5 x 40.25 x 320 mm
Input
  • 100 - 140Vac / 8 - 6A / 50-60Hz
  • 200 - 240Vac / 4.5 - 3.8A / 50-60Hz
  • 200 - 240Vdc / 4.5 - 3.8A (CCC Only)
+12V
  • Max: 58A / Min: 0.5A (100 - 140Vac)
  • Max: 62A / Min: 0.5A (200 - 240Vac)
  • Max: 62A / Min: 0.5A (200 - 240Vdc)
    (CB/CCC Only)
+5Vsb
  • Max: 3A / Min: 0A
Output Type
  • Gold Finger Connector Mating with Molex 45984-4343
Certification
  • 80 PLUS Platinum Level
  • Platinum Certified
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
     10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

How to Order

To place an order, please make an enquiry using the 'Request More Information' form at the bottom of the page and one of our experienced sales team will contact you shortly.

Alternatively, you can call or email us and speak to one of our experienced technical sales team.

Tel: 01438 842 300
Email: sales@tmc-uk.com
