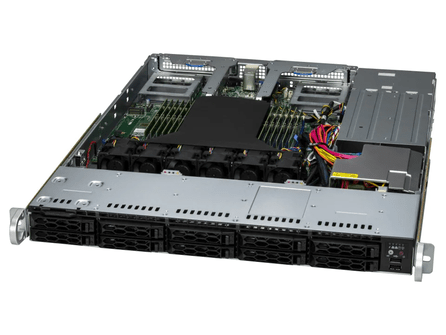

Supermicro 1115CS-TNR (Complete System Only)



  • Web Server, Firewall Application
  • Data Center Optimized, Value IaaS
  • Cloud Computing, Compact Server
  • DNS & Gateway Servers, Firewall Application
  • CDN, Edge Nodes

1. Single 4th Generation AMD EPYC™ 9004 Series Processors
2. 12 DIMM slots up to 3TB 3DS ECC RDIMM DDR5-4800MHz
3. 2 PCIe 5.0 x16 FHHL
4. Dual AIOM with NCSI (OCP 3.0) for networking, 1 dedicated IPMI LAN
5. 10x 2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
6. 860W redundant Platinum level 100-240Vac and 200-240 Vdc power supplies (*Full redundancy based on configuration and application load)
7. 2 On-board PCIe 3.0 x2 M.2 NVMe 80mm/110mm (Boot)



Price available upon request.

Product Specifications

Product SKUs
AS-1115CS-TNR
  • A+ Server AS-1115CS-TNR (Black front & silver body)
Motherboard
Super H13SSW
Processor
CPU
  • Single Socket SP5
  • 4th Generation AMD EPYC™ 9004 Series Processor
  • Support CPU TDP up to 360W *
Cores
  • Up to 96C/192T
Note
  • * Certain CPUs with high TDP may be supported only under specific conditions.
System Memory
Memory
  • Memory Capacity: 12 DIMM slots
  • Up to 3TB: 3DS ECC Registered RDIMM, DDR5-4800MHz
  • Memory Type: 4800MHz ECC DDR5 RDIMM Up to 256GB of memory
Note
  • For optimal performance AMD recommends full memory population
Memory Voltage
  • 1.1 V
Error Detection
  • Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
  • Via Slim-AIOM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 Dedicated IPMI LAN port
USB
  • 2 USB 2.0 port(s) (2 front)
  • 2 USB 3.0 port(s) (2 rear)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
System BIOS
BIOS Type
  • AMI 32Mb SPI Flash EEPROM
BIOS Features
  • ACPI 6.4
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • USB Keyboard support
Management
Software
  • IPMIView for Linux/ Windows
  • IPMICFG
  • SSM
  • SPM
  • SUM
  • Watch Dog
  • SuperDoctor® 5
Power Configurations
  • Power-on mode control for AC power loss recovery
  • ACPI Power Management
PC Health Monitoring
Voltage
  • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-LB16TS-R860AWP-A
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 23.5" (597mm)
Package
  • 7.8" (H) x 23.8" (W) x 32.4" (D)
Weight
  • Net Weight: 25 lbs (11.3 kg)
  • Gross Weight: 46 lbs (20.9 kg)
Available Colours
  • Black Front & Silver Body
Front Panel
Buttons
  • Power On/Off
  • Universal Information (UID)
 LEDs
  • Drive activity
  • Network activity
  • Power status
  • Universal Information (UID)
Expansion Slots
PCI-Express (PCIe)
  • 2 PCIe 5.0 x16 FHHL slot(s)
  • 2 PCIe 5.0 x16 AIOM slot(s)
Drive Bays / Storage
Hot-swap
  • 10x 2.5" hot-swap NVMe/SATA/SAS drive bays (10x 2.5" NVMe hybrid) (10x 2.5" SATA by default)
M.2
  • 2x NVMe (PCIe Gen 3x2, Boot drive only)
  • M-Key, 2280/22110
System Cooling
Fans
  • 6x 4cm heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud(s)
Power Supply

800W/860W 1U redundant power supply
Dimension
(W x H x L)
  • 54.5 x 40.25 x 322 mm
AC Input
  • 800W: 100-127Vac / 9A-7.5A / 50-60Hz
  • 860W: 200-240Vac / 6A-4.5A / 50-60Hz
+12V
  • Max: 66.6A / Min: 0A (100Vac-127Vac)
  • Max: 71.6A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification
  • Titanium Level96%  Titanium Level
Operating Environment
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

How to Order

To place an order, please make an enquiry using the 'Request More Information' form at the bottom of the page and one of our experienced sales team will contact you shortly.

Alternatively, you can call or email us and speak to one of our experienced technical sales team.

Tel: 01438 842 300
Email: sales@tmc-uk.com
