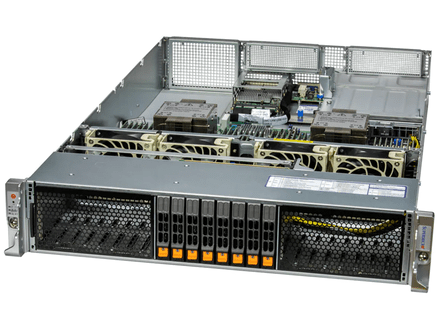

Supermicro 221H-TNR (Complete System Only)

  • Virtualisation
  • Software-defined Storage
  • AI Inference and Machine Learning
  • Cloud Computing
  • Enterprise Server

1. Dual Socket E (LGA-4677) 4th Gen Intel® Xeon® Scalable processors
2. 32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-4800
3. Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots with support for double-width GPU/Accelerator cards
4. Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)
5. 8x 2.5" hot-swap NVMe/SATA/SAS drive bays; Optional 8x 2.5" hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe/SATA drive slots; Optional RAID support via storage add-on card
6. 4 heavy duty hot-swap fans with optimal fan speed control





Price available upon request.

Product Specifications

Product SKUs
SYS-221H-TNR
  • SuperServer SYS-221H-TNR
Motherboard
Super X13DEM
Processor
CPU
  • Dual Socket E (LGA-4677)
  • 4th Gen Intel® Xeon® Scalable processors
  • Intel Xeon CPU Max Series with high bandwidth memory (HBM)
Notes
  • Supports up to 350W TDP CPUs (Air-Cooled)
  • Supports up to 350W TDP CPUs (Liquid-Cooled)
System Memory
Memory
  • Memory Capacity: 32 DIMM slots
  • Up to 8TB: 32x 256 GB DRAM
  • Memory Type: 4800MHz ECC DDR5
Memory Voltage
  • 1.1 V
Error Detection
  • ECC
On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support
NVMe
  • NVMe; RAID 0/1/5/10 support (Intel® VROC RAID key required)
Chipset
  • Intel® C741
Network Connectivity
  • 2x 1GbE BaseT with Intel® i350-AM2 (optional)
  • 4x 1GbE BaseT or 4x 1GbE SFP with Intel® i350-AM4 (optional)
  • 2x 10GbE BaseT with Intel® X550-AT2 (optional)
  • 2x 10GbE SFP+ with Intel® X710-BM2 (optional)
  • 4x 10GbE SFP+ with Intel® XL710-BM1 (optional)
  • 4x 10GbE RJ45/SFP+ with Intel® X710-TM4 (optional)
  • 2x 25GbE SFP28 with Broadcom® BCM57414 (optional)
  • 4x 25GbE RJ45/SFP28 with Mellanox® CX-4 Lx EN Intel® X550-AT2 (optional)
  • 2x 100GbE QSFP28 with Broadcom® BCM57508 (optional)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 Dedicated BMC LAN port
USB
  • 2 USB 2.0 port(s) (2 rear)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 32Mb SPI Flash EEPROM
Management
Software
  • Redfish API
  • IPMI 2.0
  • SSM
  • Intel® Node Manager
  • SPM
  • KVM with dedicated LAN
  • SUM
  • NMI
  • Watch Dog
  • SuperDoctor® 5
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-HS219-R1K24P
Dimensions and Weight
Height
  • 3.5" (88.9mm)
Width
  • 17.2" (437mm)
Depth
  • 29.9" (760mm)
Package
  • 10.4" (H) x 23.8" (W) x 43.6" (D)
Weight
  • Net Weight: 40 lbs (18.2 kg)
  • Gross Weight: 66 lbs (30 kg)
Available Colours
  • N/A
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
 LEDs
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Power
  • Power Fail
  • System information
Expansion Slots
PCI-Express (PCIe)
  • 4 (Optional) PCIe 5.0 x16 or x8 FH, 10.5"L slot(s)
  • 4 (Optional) PCIe 5.0 x8 FH, 10.5"L slot(s)
Drive Bays / Storage
Hot-swap
  • 8x 2.5" hot-swap NVMe/SATA/SAS drive bays (Configurable option for 16x 2.5" hot-swap NVMe/SAS/SATA drive bays. NVMe, SATA, or SAS support requires additional parts. Please see the Optional Parts list.)
M.2
  • 2 M.2 NVMe OR 2 M.2 SATA3
  • M-Key, 2280/2210
System Cooling
Fans
  • 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shroud(s)
Liquid Cooling
  • Direct to Chip (D2C) Cold Plate (optional)
Power Supply

1U 800W/1200W Redundant Titanium CRPS w/PMBus power supply, W73.5 x H40 x L265mm
Dimension
(W x H x L)
  • 73.5 x 40 x 265 mm
AC Input
  • 800W: 100-127Vac / 9.8A-7A / 50-60Hz
  • 1200W: 200-240Vac / 7.5A-6A / 50-60Hz
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)
  • Max: 100A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification
  • Titanium Level96%  Titanium Level
Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
