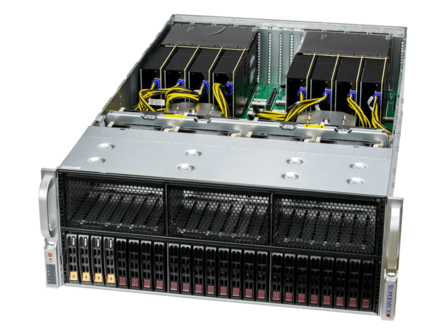

Supermicro 4125GS-TNRT (Complete System Only)

AI / Deep Learning
High Performance Computing

1. Flexible GPU support: active & passive GPUs, Up to 8 direct attached double width, full length GPUs
2. AMD EPYC™ 9004 Series Processor up to 360W TDP, Dual-Socket, AMD EPYC™ 9004 Series Processors up to 360W TDP
3. 12 DIMM Slots, up to 3TB DDR5 memory, 24 DIMM Slots, up to 6TB DDR5 memory
4. 1 M.2 Slot, up to 4x 2.5" Hot-swap NVMe drive bays
5. AIOM / OCP 3.0 Support

Price available upon request.

Product Specifications

Product SKUs

AS -4125GS-TNRT

A+ Server AS -4125GS-TNRT (Black Front & Silver Body)

Motherboard

Super H13DSG-O-CPU

Processor

CPU	Dual Socket SP5 AMD EPYC™ 9004 Series Processors Support CPU TDP 400W
Cores	Up to 96C/192T

GPU

Supported GPU	Up to 8 Double-Width/Single-Width Cards (Full Height Full Length) NVIDIA H100 and AMD MI200 series Supports both active and passive cooled GPUs
CPU-GPU Interconnect	Direct Attached
GPU-GPU Interconnect	NVIDIA® NVLink™ Bridge (optional)

System Memory

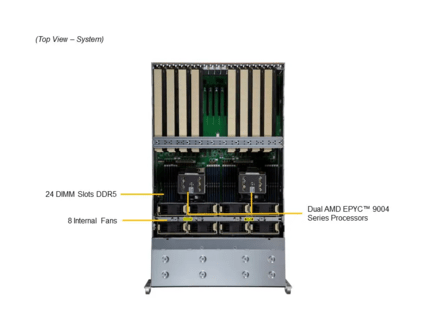

Memory	Memory Capacity: 24 DIMM slots Up to 6TB: 24x 256 GB DRAM Memory Type: 4800MHz ECC DDR5 RDIMM/LRDIMM
Note	Full memory population recommended for optimal performance.
Memory Voltage	1.1 V
Error Detection	ECC

On-Board Devices

SATA	SATA3 (6Gbps)
Chipset	AMD SP5
Network Connectivity	2x 10GbE BaseT
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

Video

1 VGA port(s)

System BIOS

BIOS Type

AMI 32Mb SPI Flash EEPROM

Management

Software	OOB Management Package (SFT-OOB-LIC ) Redfish API IPMI 2.0 SSM Intel® Node Manager SPM KVM with dedicated LAN SUM NMI Watch Dog SuperDoctor® 5
Power Configurations	ACPI Power Management Power-on mode for AC power recovery

PC Health Monitoring

CPU	7 +1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis

Form Factor	4U Rackmount
Model	CSE-418G2TS

Dimensions and Weight

Height	7" (178mm)
Width	17.2" (437mm)
Depth	29" (737mm)
Package	26.57" (H) x 27" (W) x 41" (D)
Weight	Net Weight: 65.5 lbs (29.7 kg) Gross Weight: 100 lbs (45.3 kg)
Available Colours	Black Front & Silver Body

Expansion Slots

PCI-Express (PCIe)

9 PCIe 5.0 x16 FHFL slot(s)

Drive Bays / Storage

Hot-swap

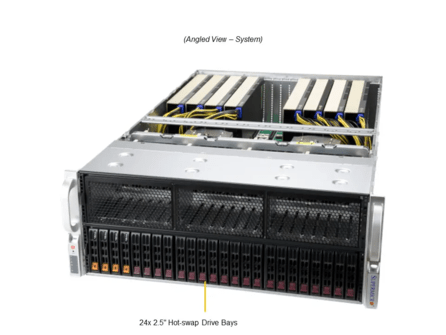

24x 2.5" hot-swap NVMe/SATA/SAS drive bays (4x 2.5" NVMe dedicated)

System Cooling

Fans

8 heavy duty fans with optimal fan speed control

Power Supply

2000W 1U redundant power supply W73.5 x L203 x H40mm
Dimension (W x H x L)	73.5 x 40 x 203 mm
AC Input	1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 230-240Vdc
+12V	Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166A / Min: 0A (230Vac-240Vac)
12V SB	Max: 3.5A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level

Operating Environment

Environmental Spec.

Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)

How to Order

To place an order, please make an enquiry using the 'Request More Information' form at the bottom of the page and one of our experienced sales team will contact you shortly.

Alternatively, you can call or email us and speak to one of our experienced technical sales team.

Tel: 01438 842 300
Email: sales@tmc-uk.com
