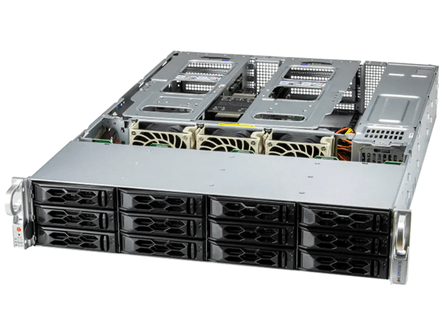

Supermicro 521C-NR (Complete System Only)

  • Cloud Computing
  • Data Center Optimized
  • Network Appliance
  • AI inferencing, ML training
  • Database/Storage

1. Single Socket E (LGA-4677) 4th Gen Intel® Xeon® Scalable processors. Up to 350W TDP
2. Intel® C741 Chipset
3. 16 DIMMs; Supports 3DS DDR5 RDIMM. Up to 4800 MHz
4. 2 PCIe 5.0 x16 FHFL + 2 PCIe 5.0 x16 FHHL (OR) 4 PCIe 5.0 x8 FHFL and 2 PCIe 5.0 x16 FHHL; 1 PCIe 5.0 x16 AIOM NIC(OCP 3.0);
5. Single AIOM with NCSI (OCP 3.0) for networking, 1 dedicated IPMI LAN
6. 12x front hot-swap 3.5" SATA3 drive bays (Optional 2 hybrid Gen5 NVMe), SAS3 with additional SAS controller card
7. Redundant Titanium 1200W Power Supplies





Price available upon request.

Product Specifications

Product SKUs
SYS-521C-NR
  • SuperServer SYS-521C-NR (Black front & sliver body)
Motherboard
Super X13SEDW-F
Processor
CPU
  • Single Socket E (LGA 4677)
  • 4th Gen Intel® Xeon® Scalable processors
Notes
  • Supports up to 350W TDP CPUs (Air Cooled)
System Memory
Memory
  • Memory Capacity: 16 DIMM slots
  • Up to 4TB: 16x 256 GB DRAM
  • Memory Type: 4800/4400MHz ECC DDR5 RDIMM
Memory Voltage
  • 1.1 V
Error Detection
  • Yes
On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support
NVMe
  • NVMe
Chipset
  • Intel® C741
Network Connectivity
  • Via AIOM & AOC
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
SATA
  • 12 SATA (6Gbps) port(s)
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 2.0 port(s) (2 headers)
  • 2 USB 3.2 Gen 1 port(s) (2 rear)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
System BIOS
BIOS Type
  • AMI 32Mb SPI Flash EEPROM
Management
Software
  • Supemicro Out of Band (OOB) License (Included per Node)
  • SuperCloud Composer
  • IPMI2.0
  • Redfish API
  • SSM
  • Intel® Node Manager
  • SPM
  • KVM with dedicated LAN
  • SUM
  • NMI
Power Configurations
  • ACPI Power Management
PC Health Monitoring
CPU
  • 8 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-LA26TS-R1K23AWP1
Dimensions and Weight
Height
  • 3.5" (88.9mm)
Width
  • 17.2" (437mm)
Depth
  • 25.5" (648mm)
Package
  • 11.4" (H) x 26.7" (W) x 34.5" (D)
Weight
  • Net Weight: 33 lbs (15 kg)
  • Gross Weight: 59 lbs (26.76 kg)
Available Colours
  • Black front & silver body
Front Panel
Buttons
  • Power On/Off
  • Universal Information (UID)
 LEDs
  • Drive activity
  • Network activity
  • Power status
  • Universal Information (UID)
Expansion Slots
PCI-Express (PCIe)
  • 4 PCIe 5.0 x8 FHFL slot(s)
  • 2 PCIe 5.0 x16 FHHL slot(s)
Note
  • AIOM slot shares PCIe lanes with NVMe drives. Acronyms: (FH = Full Height, LP = Low Profile, FL = Full Length, HL = Half Length)
Drive Bays / Storage
Hot-swap
  • 12x 3.5" NVMe/SATA/SAS drive bays (2x 3.5" NVMe hybrid)
M.2
  • 2x PCIe 3.0 x 2
  • M-key, 2280, 22110
System Cooling
Fans
  • 3 heavy duty PWM 80x80x38mm Fan(s)
Power Supply

1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
AC Input
  • 1000W: 100-127Vac / 15A-12A / 50-60Hz
  • 1200W: 200-240Vac / 8.5A-7A / 50-60Hz
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)
  • Max: 100A / Min: 0A (200Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • 19 Pairs Gold Finger Connector
Certification
  • Titanium Level96%  Titanium Level
Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity:
       8% to 80% (non-condensing)
  • Non-operating Relative Humidity:
       8% to 90% (non-condensing)
