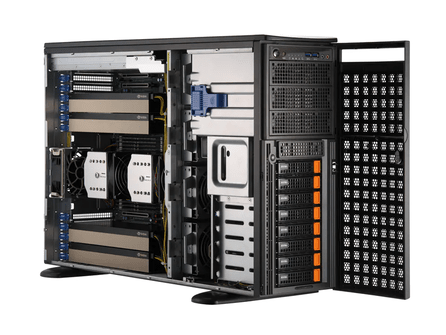

Supermicro 741GE-TNRT

  • High Performance Computing
  • VDI
  • AI/Deep Learning Training
  • Media/Video Streaming
  • Cloud Gaming
  • Animation and Modeling
  • Design & Visualization
  • 3D Rendering
  • Diagnostic Imaging
  • AI Training

1. 4th Gen Intel® Xeon® Scalable processor support,including Xeon® CPU MAX Series
2. 16 DIMM slots Up to 4TB: 16x 256 GB DRAM Memory Type: 4800MHz ECC DDR5
3. 4x PCIe 5.0 x16 (double-width) slots,   3x PCIe 5.0 x16 (single-width) slots Up to 4x double width, full length GPUs
4. 2x M.2 NVMe  for boot drive only, Total 8x 3.5" Hot-swap SATA/NVMe/SAS drive bays, Up to 8x NVMe drives (8 NVMe drives supported by default)
5. 4 Removable heavy duty fans w/ Optimal Fan Speed Control
6. 2x 2000W (1+1) Redundant Power Supplies, Titanium Level





Price available upon request.

Product Specifications

Product SKUs
SYS-741GE-TNRT
  • SuperServer SYS-741GE-TNRT (Black front & silver body)
Motherboard
Super X13DEG-QT
Processor
CPU
  • Dual Socket E (LGA-4677)
Notes
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Supported GPU
  • GPU-NVH100-80,GPU-NVA100-80-NC,GPU-NVA30-NC,GPU-NVQRTX-A6000
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLink™ Bridge (optional)
System Memory
Memory
  • Memory Capacity: 16 DIMM slots
  • Up to 4TB: 16x 256 GB DRAM
  • Memory Type: 4800MHz ECC DDR5 DRAM
Memory Voltage
  • 1.1 V
Error Detection
  • ECC
On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support
Chipset
  • Intel® C741
Network Connectivity
  • 2x 10GbE BaseT with Intel® X550-AT2
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
USB
  • 2 USB 3.2 Gen1x2; port(s) (2 Front_USB)
  • 1 USB 3.2 Gen2x1 (Type C) port(s) (1 Rear_USB)
  • 3 USB 3.2 Gen1 port(s) (3 Rear_USB)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 32Mb SPI Flash EEPROM
Management
Software
  • OOB Management Package (SFT-OOB-LIC )
  • Redfish API
  • IPMI 2.0
  • SSM
  • Intel® Node Manager
  • SPM
  • KVM with dedicated LAN
  • SUM
  • NMI
  • Watch Dog
  • SuperDoctor® 5
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
PC Health Monitoring
Voltage
  • 8+4 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • Tower Rackmount
Model
  • CSE-749TS-R2K05BP
Dimensions and Weight
Height
  • 7" (178mm)
Width
  • 17.2" (437mm)
Depth
  • 29" (737mm)
Package
  • 27" (H) x 13" (W) x 38" (D)
Weight
  • Net Weight: 46 lbs (20.9 kg)
  • Gross Weight: 62 lbs (28.1 kg)
Available Colours
  • Black Front & Silver Body
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
 LEDs
  • Hard drive activity LED
  • Network activity LEDs
  • Power status LED
  • System Overheat & Power Fail LED
Expansion Slots
PCI-Express (PCIe)
  • 2 PCIe 5.0 x16 FHHL slot(s)
  • 2 PCIe 5.0 x16 AIOM slot(s)
Drive Bays / Storage
Hot-swap
  • 10x 2.5" hot-swap NVMe/SATA/SAS drive bays (10x 2.5" NVMe hybrid) (10x 2.5" SATA by default)
M.2
  • 2x NVMe (PCIe Gen 3x2, Boot drive only)
  • M-Key, 2280/22110
System Cooling
Fans
  • 6x 4cm heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud(s)
Power Supply

800W/860W 1U redundant power supply
Dimension
(W x H x L)
  • 54.5 x 40.25 x 322 mm
AC Input
  • 800W: 100-127Vac / 9A-7.5A / 50-60Hz
  • 860W: 200-240Vac / 6A-4.5A / 50-60Hz
+12V
  • Max: 66.6A / Min: 0A (100Vac-127Vac)
  • Max: 71.6A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification
  • Titanium Level96%  Titanium Level
Operating Environment
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

How to Order

To place an order, please make an enquiry using the 'Request More Information' form at the bottom of the page and one of our experienced sales team will contact you shortly.

Alternatively, you can call or email us and speak to one of our experienced technical sales team.

Tel: 01438 842 300
Email: sales@tmc-uk.com
